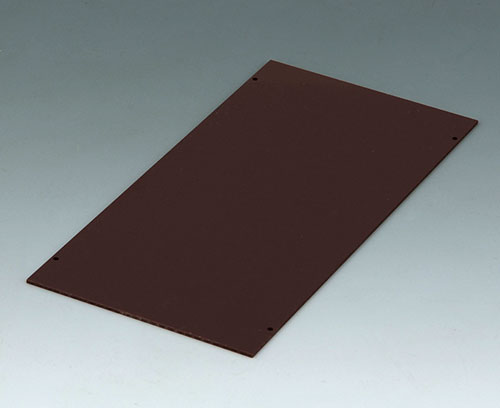

C6506011 Hardboard plate E155

C6506011

Hardboard plate E155

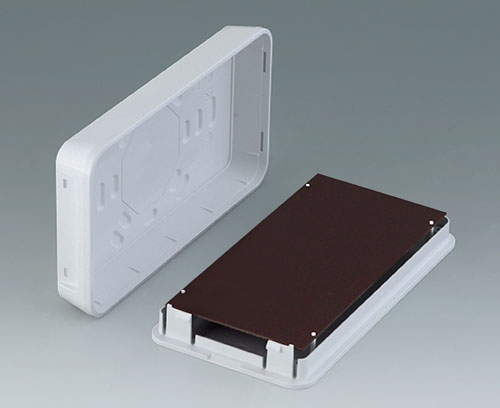

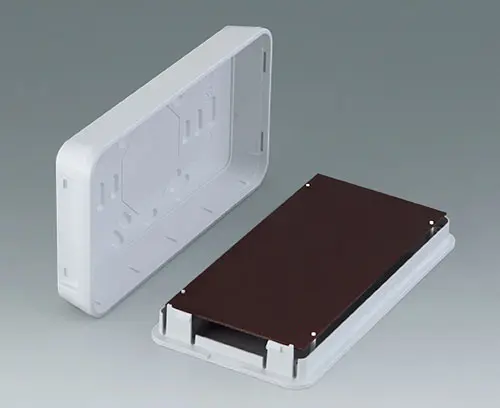

The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities..

Supply

1 hardboard plate

  • Usato per
C6406107 SMART-PANEL E155

C6406107

SMART-PANEL E155 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

Chiudi

C6406107

SMART-PANEL E155
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016
155x84x21,3mm
IP 40
  • Dati tecnici
  • Purchasing Data
Length
136 mm
Width
67 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
13 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
