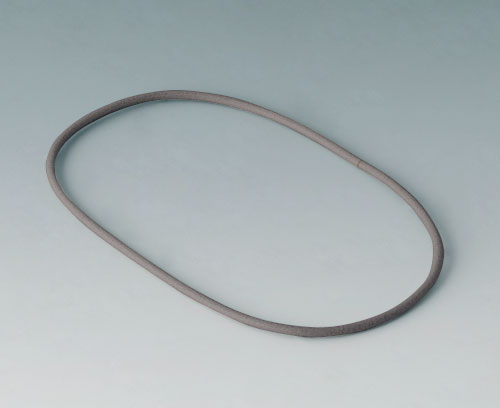

B4708920 Seal S

B4708920

Seal S

Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.

Supply

1 seal

  • Usato per
B4608107 SMART-CONTROL S, Vers. I

B4608107

SMART-CONTROL S, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Chiudi

B4608107

SMART-CONTROL S, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
142x81x46mm
IP 55 opt., IP 40
B4608207 SMART-CONTROL S, Vers. II

B4608207

SMART-CONTROL S, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Chiudi

B4608207

SMART-CONTROL S, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
142x81x46mm
IP 55 opt., IP 40
  • Dati tecnici
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
40081900
Country of manufacture
Germany
