C2112122 ROBUST-BOX WIDTH 120, Vers. II

C2112122

ROBUST-BOX WIDTH 120, Vers. II

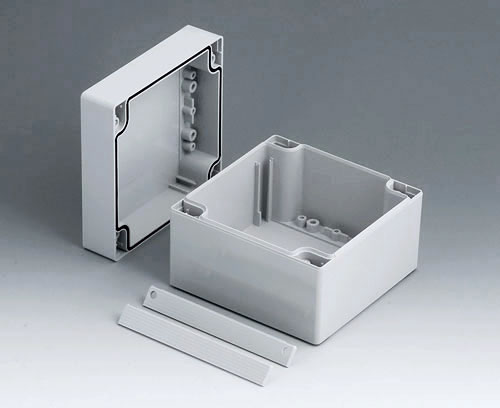

Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply

2 case shells with sealing, cover strips top and bottom, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

C2299042 Security kit width 120

C2299042

Security kit width 120 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top
