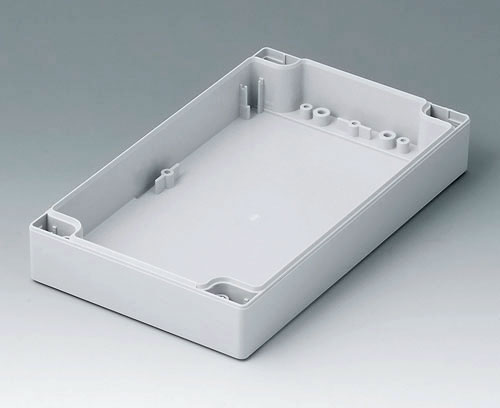

C0122001 Case shell 120, with tongue

C0122001

Case shell 120, with tongue

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with tongue

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

C1122001 Case shell 120, with groove

C1122001

Case shell 120, with groove Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with groove

Chiudi

C1122001

Case shell 120, with groove
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
200x120x30mm
C2299001 Assembly kit

C2299001

Assembly kit Each 4 screws for case assembly, and for mounting PCBs.

Supply 1 assembly kit

Chiudi

C2299001

Assembly kit
Prodotto aggiunto alla lista

Accessory to complete

C2201201 Cover strips 120, without holes

C2201201

Cover strips 120, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Chiudi

C2201201

Cover strips 120, without holes
Prodotto aggiunto alla lista
PC (UL 94 HB)
light grey RAL 7035
C2203123 Cover strips 120

C2203123

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Chiudi

C2203123

Cover strips 120
Prodotto aggiunto alla lista
PC (UL 94 HB)
silver grey RAL 7001
C2203124 Cover strips 120

C2203124

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Chiudi

C2203124

Cover strips 120
Prodotto aggiunto alla lista
PC (UL 94 HB)
red RAL 3020
C2203125 Cover strips 120

C2203125

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Chiudi

C2203125

Cover strips 120
Prodotto aggiunto alla lista
PC (UL 94 HB)
yellow RAL 1023
C2203126 Cover strips 120

C2203126

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Chiudi

C2203126

Cover strips 120
Prodotto aggiunto alla lista
PC (UL 94 HB)
green RAL 6024
C2203127 Cover strips 120

C2203127

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Chiudi

C2203127

Cover strips 120
Prodotto aggiunto alla lista
PC (UL 94 HB)
blue RAL 5017
C2211201 Cover strips 120, with holes

C2211201

Cover strips 120, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Chiudi

C2211201

Cover strips 120, with holes
Prodotto aggiunto alla lista
PC (UL 94 HB)
light grey RAL 7035

Accessory "protection"

C2299042 Security kit width 120

C2299042

Security kit width 120 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Chiudi

C2299042

Security kit width 120
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Chiudi

C2306917

Pressure equalisation element M6x0.75
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Chiudi

C2310917

Pressure equalisation element M10x1
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

Accessory "wall/holder"

C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

Chiudi

C2203128

Fastening elements to DIN-Rails
Prodotto aggiunto alla lista
PA 6
light grey RAL 7035
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Chiudi

C2299028

Wall mounting brackets
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Chiudi

C2299031

Securing hinge for the cover
Prodotto aggiunto alla lista
PP
natural-coloured
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Chiudi

C2299088

Hinge
Prodotto aggiunto alla lista
PA 6
light grey RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308132

Self-tapping screw 3 x 8 mm (T10)
Prodotto aggiunto alla lista
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Chiudi

C2299018

Case feet
Prodotto aggiunto alla lista
TPE (UL 94 HB)
C2299058 PCB support

C2299058

PCB support For mounting pre-assembled PCB units. Suitable for: 200 x 120 mm for Eurocard size and all other cases width 120 mm.

Supply 2 PCB support, assembly kit (threaded bushes, screws)

Chiudi

C2299058

PCB support
Prodotto aggiunto alla lista
PC (UL 94 HB)
light grey RAL 7035
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Chiudi

C2299068

PCB support
Prodotto aggiunto alla lista
PC (UL 94 HB)
light grey RAL 7035

Customising options for C0122001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
light grey RAL 7035
Length
200 mm
Width
120 mm
Height
30 mm
PCB length, base
160 mm
PCB width, base
105 mm
Keypad length
162,7 mm
Keypad width
105,4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
159 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
