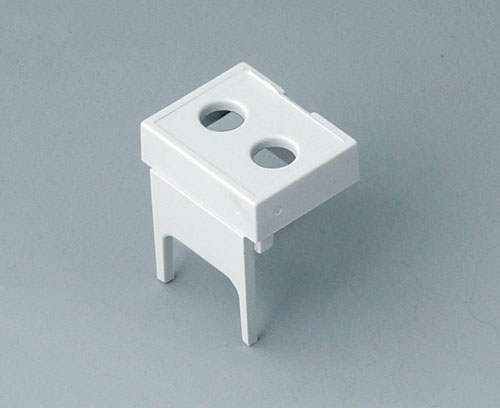

B6800114 Terminal guards, with holes, 7.5 & 7.62

B6800114

Terminal guards, with holes, 7.5 & 7.62

Easy assembly through snap-in installation of the case parts.

Version

2 poles (designed to allow the use of terminals, block 7,5 & 7,62)

Supply

1 piece

  • Usato per
  • Modifiche specifiche del cliente
B6700100 RAILTEC C, 1 module, Vers. I

B6700100

RAILTEC C, 1 module, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6700100

RAILTEC C, 1 module, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
17,5x90x58mm
B6700102 RAILTEC C, 1 module, Vers. II

B6700102

RAILTEC C, 1 module, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6700102

RAILTEC C, 1 module, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
17,5x90x58mm

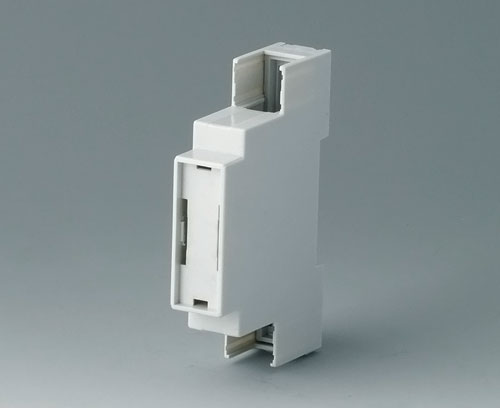

B6700106 RAILTEC C, 1 module, Vers. IV

B6700106

RAILTEC C, 1 module, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6700106

RAILTEC C, 1 module, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
17,5x90x58mm

Customising options for B6800114

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
light grey
Pitch
7.5 & 7.62 mm
Poles
2
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
