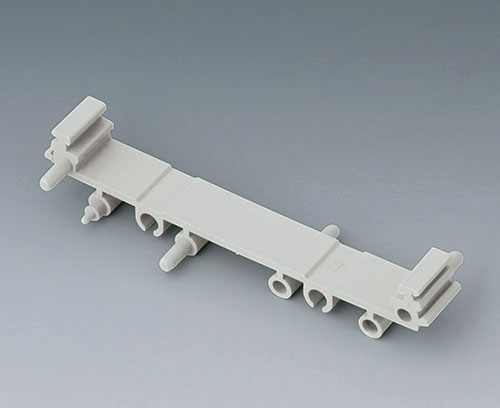

B6724330 RAILTEC SUP. 72, intermediate part

B6724330

RAILTEC SUP. 72, intermediate part

Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 intermediate part

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B6724333 RAILTEC SUP. 72, end section

B6724333

RAILTEC SUP. 72, end section Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 end section

Chiudi

B6724333

RAILTEC SUP. 72, end section
Prodotto aggiunto alla lista
PA 6 (30) (UL 94 V-0)
light grey
82x11,2x16mm
B6724334 RAILTEC SUP. 72, end section

B6724334

RAILTEC SUP. 72, end section Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 end section

Chiudi

B6724334

RAILTEC SUP. 72, end section
Prodotto aggiunto alla lista
PA 6 (30) (UL 94 V-0)
light grey
82x22,2x16mm
B6724335 RAILTEC SUP. 72, end section with foot

B6724335

RAILTEC SUP. 72, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TS35).

Supply 1 end section with foot

Chiudi

B6724335

RAILTEC SUP. 72, end section with foot
Prodotto aggiunto alla lista
PA 6 (30) (UL 94 V-0)
light grey
82x11,2x22,5mm
B6724336 RAILTEC SUP. 72, end section with foot

B6724336

RAILTEC SUP. 72, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

Chiudi

B6724336

RAILTEC SUP. 72, end section with foot
Prodotto aggiunto alla lista
PA 6 (30) (UL 94 V-0)
light grey
82x22,2x22,5mm

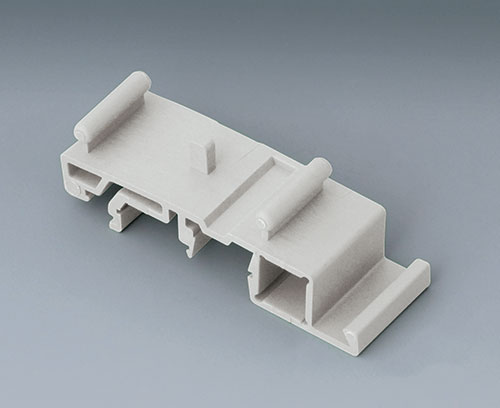

B6724337 RAILTEC SUP. 72, foot

B6724337

RAILTEC SUP. 72, foot Can be used for intermediate part and end section without foot. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 foot

Chiudi

B6724337

RAILTEC SUP. 72, foot
Prodotto aggiunto alla lista
PA 6 (30) (UL 94 V-0)
light grey

Customising options for B6724330

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Length
82 mm
Width
11,25 mm
Height
16 mm
PCB length, base
72 mm
PCB width, base
11,25 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 38 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
