B6705106 RAILTEC C, 6 modules, Vers. IV

B6705106

RAILTEC C, 6 modules, Vers. IV

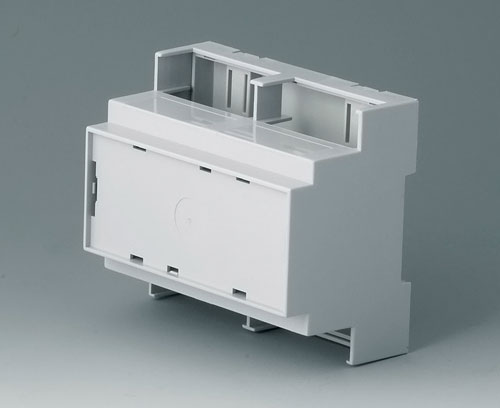

Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version

Front closed, connection side with free through passage

Supply

1 bottom part, 3 clips, 1 top part

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6802650 Terminal block, block 5.08

B6802650

Terminal block, block 5.08 PCB terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6802650

Terminal block, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
light grey

Accessory "terminal guards"

B6802111 Terminal guards, closed

B6802111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6802111

Terminal guards, closed
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6802112 Terminal guards, perforated, 5.08

B6802112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 9 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

Chiudi

B6802112

Terminal guards, perforated, 5.08
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6802113 Terminal guards, with holes, 5.08

B6802113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 9 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

Chiudi

B6802113

Terminal guards, with holes, 5.08
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6802114 Terminal guards, with holes, 7.5 & 7.62

B6802114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

Chiudi

B6802114

Terminal guards, with holes, 7.5 & 7.62
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6802115 Terminal guards, with holes, 10.16

B6802115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 5 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

Chiudi

B6802115

Terminal guards, with holes, 10.16
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey

Accessory

B6805100 Front panel, 6 modules

B6805100

Front panel, 6 modules Snap-in.

Supply 1 front panel

Chiudi

B6805100

Front panel, 6 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
102x42mm
B6805200 Front panel, 6 modules

B6805200

Front panel, 6 modules Snap-in.

Supply 1 front panel

Chiudi

B6805200

Front panel, 6 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
102x42mm

Customising options for B6705106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
106 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 438 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
68 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
