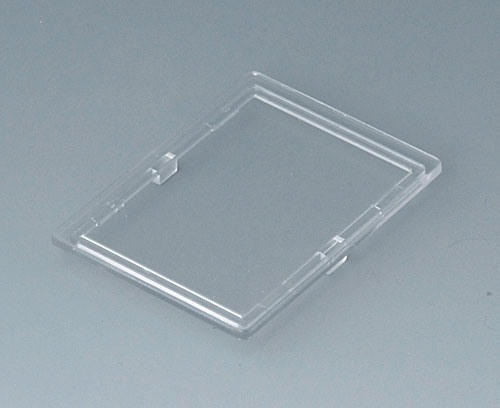

B6601100 Lid, 2 modules

B6601100

Lid, 2 modules

Locking lid for protecting the display and operating elements.

Supply

1 lid

  • Usato per
  • Modifiche specifiche del cliente
B6501110 RAILTEC B, 2 modules, Vers. V

B6501110

RAILTEC B, 2 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501110

RAILTEC B, 2 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501111 RAILTEC B, 2 modules, Vers. I

B6501111

RAILTEC B, 2 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (10 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501111

RAILTEC B, 2 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm

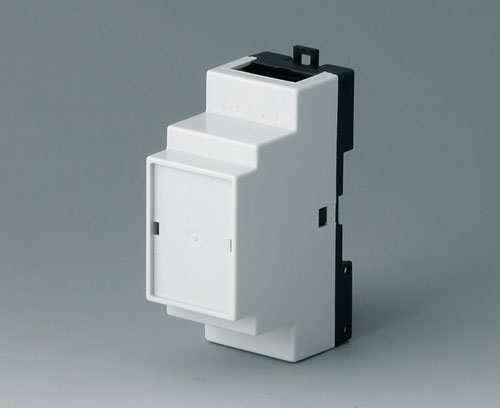

B6501112 RAILTEC B, 2 modules, Vers. II

B6501112

RAILTEC B, 2 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (5-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501112

RAILTEC B, 2 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm

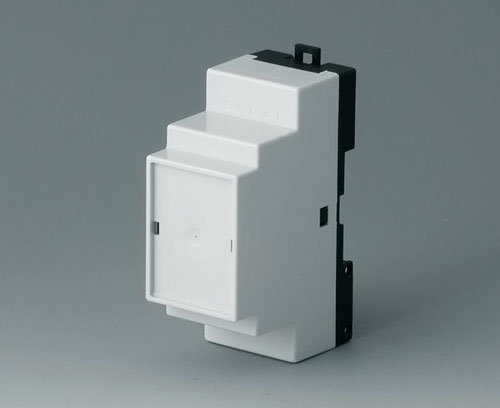

B6501113 RAILTEC B, 2 modules, Vers. III

B6501113

RAILTEC B, 2 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501113

RAILTEC B, 2 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501114 RAILTEC B, 2 modules, Vers. I

B6501114

RAILTEC B, 2 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (10 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501114

RAILTEC B, 2 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501115 RAILTEC B, 2 modules, Vers. II

B6501115

RAILTEC B, 2 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (5-poles) blocks 5.0 / 5.08.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501115

RAILTEC B, 2 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501116 RAILTEC B, 2 modules, Vers. III

B6501116

RAILTEC B, 2 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501116

RAILTEC B, 2 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501117 RAILTEC B, 2 modules, Vers. IV

B6501117

RAILTEC B, 2 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501117

RAILTEC B, 2 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501118 RAILTEC B, 2 modules, Vers. IV

B6501118

RAILTEC B, 2 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501118

RAILTEC B, 2 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501119 RAILTEC B, 2 modules, Vers. V

B6501119

RAILTEC B, 2 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501119

RAILTEC B, 2 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501121 RAILTEC B, 2 modules, Vers. VI

B6501121

RAILTEC B, 2 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501121

RAILTEC B, 2 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x90x58mm
B6511111 RAILTEC B, 2 modules, Vers. XI

B6511111

RAILTEC B, 2 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6511111

RAILTEC B, 2 modules, Vers. XI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm

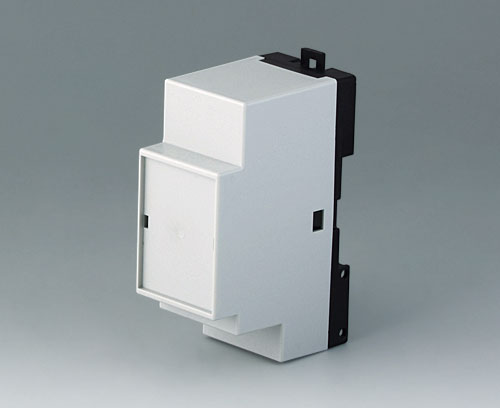

B6511112 RAILTEC B, 2 modules, Vers. XII

B6511112

RAILTEC B, 2 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (5-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6511112

RAILTEC B, 2 modules, Vers. XII
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm

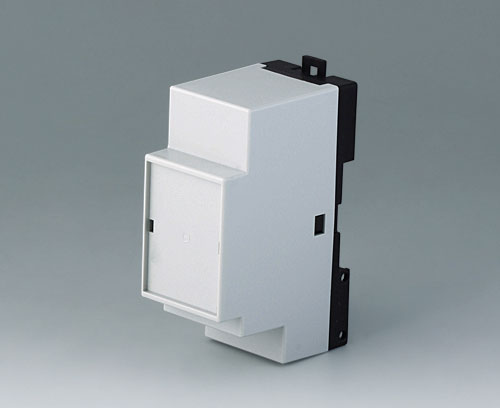

B6511113 RAILTEC B, 2 modules, Vers. XIII

B6511113

RAILTEC B, 2 modules, Vers. XIII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Chiudi

B6511113

RAILTEC B, 2 modules, Vers. XIII
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm

Customising options for B6601100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
