B6522102 RAILTEC BP, M22, closed/with ventilation slots

B6522102

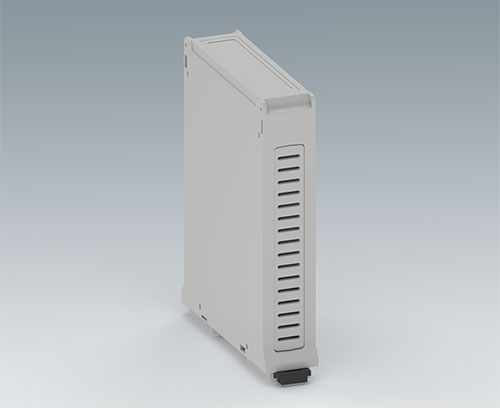

RAILTEC BP, M22, closed/with ventilation slots

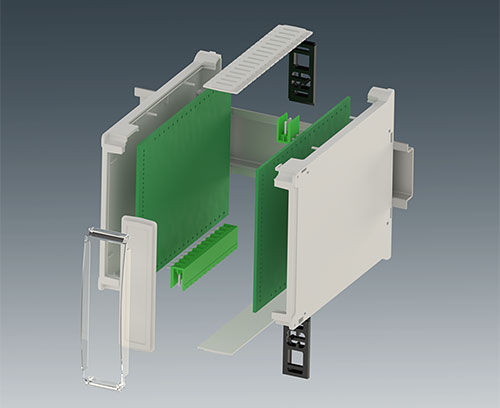

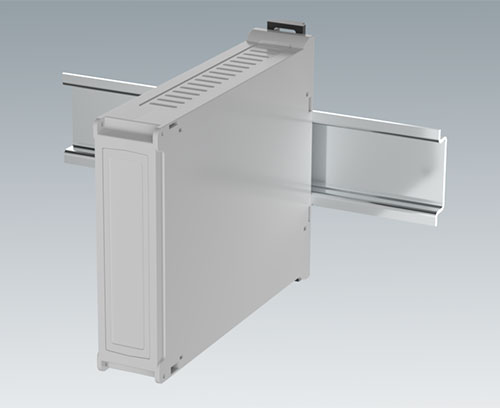

DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version

1 side panel closed, 1 side panel with ventilation slots

Supply

in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

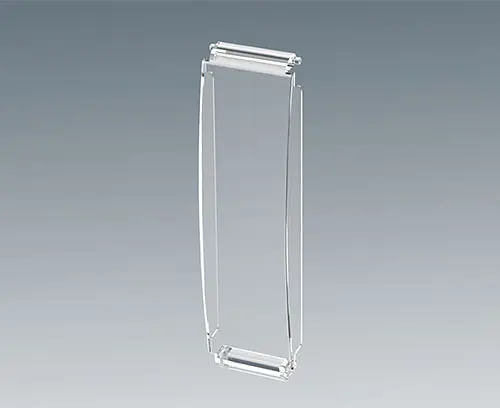

B6622101 Hinged cover

B6622101

Hinged cover Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Chiudi

B6622101

Hinged cover
Prodotto aggiunto alla lista
transparent

Accessory "terminals"

B6600222 Plug header, block 5.08

B6600222

Plug header, block 5.08 Male terminal block, 5.08. 3-pin.

Supply 1 piece

Chiudi

B6600222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

Chiudi

B6605222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6608222 Plug header, block 5.08

B6608222

Plug header, block 5.08 Male terminal block, 5.08. 6-pin.

Supply 1 piece

Chiudi

B6608222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)

Accessory

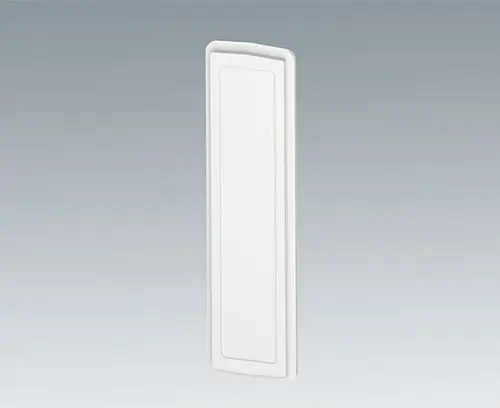

B6522801 Front panel

B6522801

Front panel Front panel for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Chiudi

B6522801

Front panel
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035

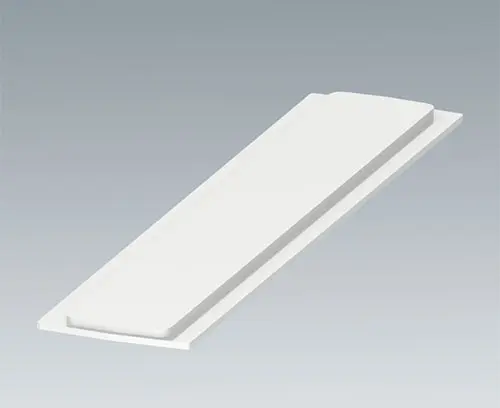

B6522811 Side panel closed

B6522811

Side panel closed Side panel closed for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Chiudi

B6522811

Side panel closed
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035

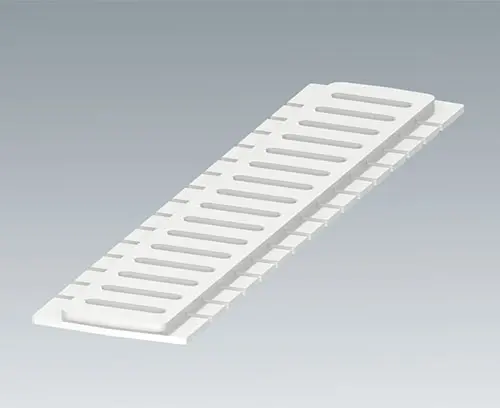

B6522821 Side panel with ventilation slots

B6522821

Side panel with ventilation slots Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Chiudi

B6522821

Side panel with ventilation slots
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035

Customising options for B6522102

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
light grey RAL 7035
Larghezza
95 mm
Altezza
23 mm
Profindità
113 mm
Pitch
5.08 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 408 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
59 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
