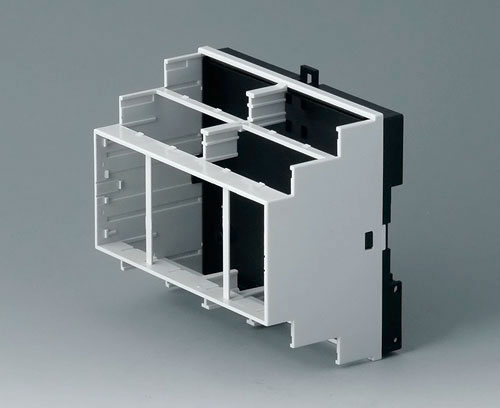

B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI

Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version

Individual configuration see accessories

Supply

1 base part with locking clip, 1 top part

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Chiudi

B6600334

Wall suspension elements
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black

Accessory "terminals"

B6600111 Terminal block, block 5.0

B6600111

Terminal block, block 5.0 PCB terminal block, 5.0. 36-pin.

Supply 1 piece

Chiudi

B6600111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
light grey
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6608111 Terminal block, block 5.0

B6608111

Terminal block, block 5.0 PCB terminal block, 5.0. 9-pin.

Supply 1 piece

Chiudi

B6608111

Terminal block, block 5.0
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)

Accessory "terminal guards"

B6608140 Terminal guards, flat

B6608140

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6608140

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6608141 Terminal guards, flat

B6608141

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Chiudi

B6608141

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6608142 Terminal guards, flat

B6608142

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version For terminal block, block 5.0, 9-poles

Supply 1 piece

Chiudi

B6608142

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6608143 Terminal guards, flat

B6608143

Terminal guards, flat Easy assembly through snap-in installation of the case parts.

Version Perforated, for block 5.0

Supply 1 piece

Chiudi

B6608143

Terminal guards, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey

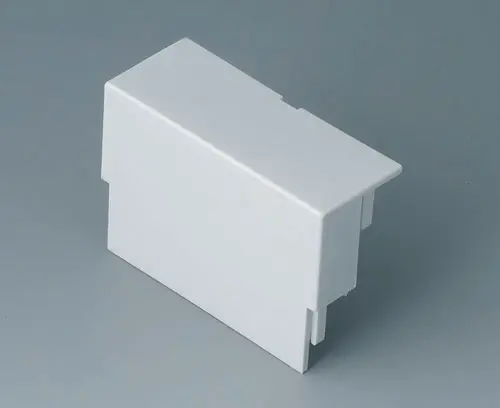

B6608160 Terminal guards, high

B6608160

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Chiudi

B6608160

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
B6608161 Terminal guards, high

B6608161

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version With ventilation slots

Supply 1 piece

Chiudi

B6608161

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey

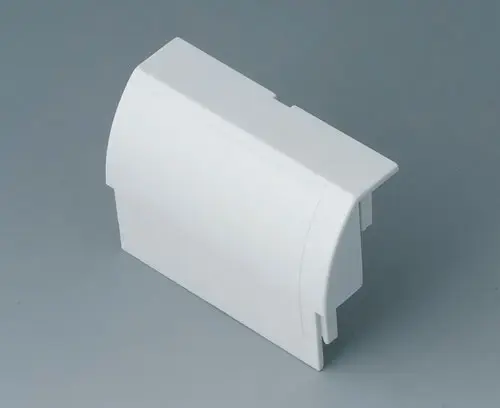

B6608162 Terminal guards, high

B6608162

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, closed

Supply 1 piece

Chiudi

B6608162

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey

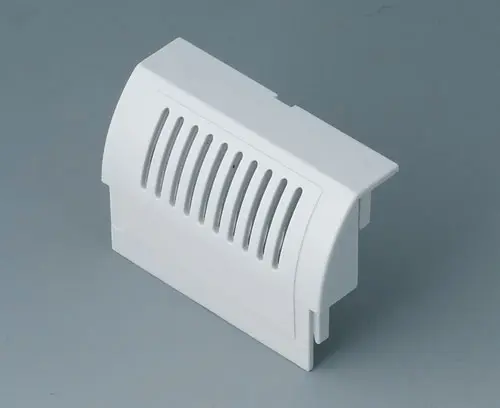

B6608163 Terminal guards, high

B6608163

Terminal guards, high Easy assembly through snap-in installation of the case parts.

Version Convex, with ventilation slots

Supply 1 piece

Chiudi

B6608163

Terminal guards, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey

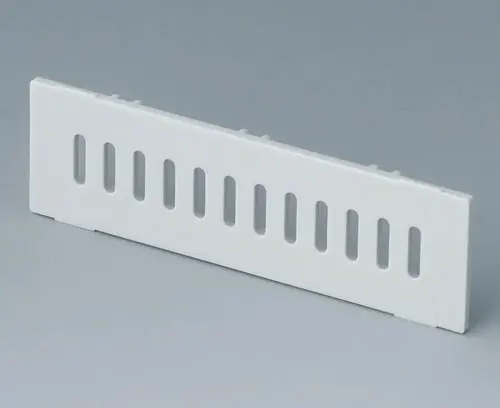

B6608191 Partition plate

B6608191

Partition plate Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.

Version With ventilation slots

Supply 1 piece

Chiudi

B6608191

Partition plate
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

B6604100 Lid, 6 modules

B6604100

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Chiudi

B6604100

Lid, 6 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent

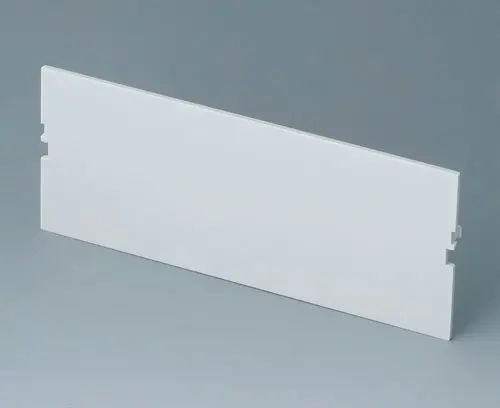

B6604180 Front panel, 6 modules, Vers. VI

B6604180

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6604180

Front panel, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
102x42mm

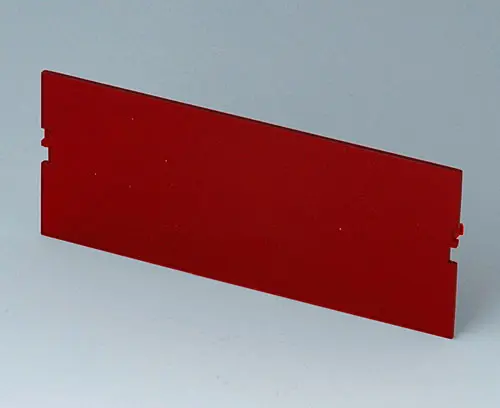

B6604480 Front panel, 6 modules, Vers. VI

B6604480

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6604480

Front panel, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
red transparent
102x42mm

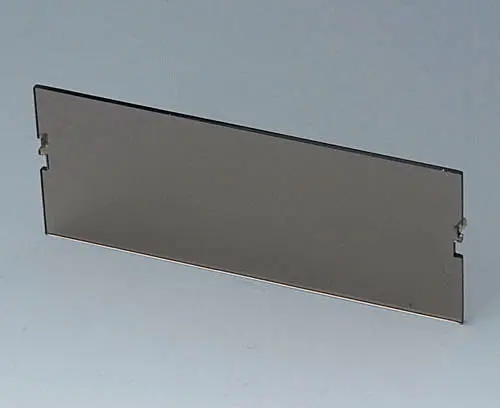

B6604580 Front panel, 6 modules, Vers. VI

B6604580

Front panel, 6 modules, Vers. VI Snap-in.

Supply 1 front panel

Chiudi

B6604580

Front panel, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
smoked glass
102x42mm

Customising options for B6504121

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
105 mm
Height
90 mm
Depth
58 mm
PCB length, base
82,4 mm
PCB width, base
99,2 mm
Pitch
5.0 mm
Poles
≤ 72
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 687 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
54 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
