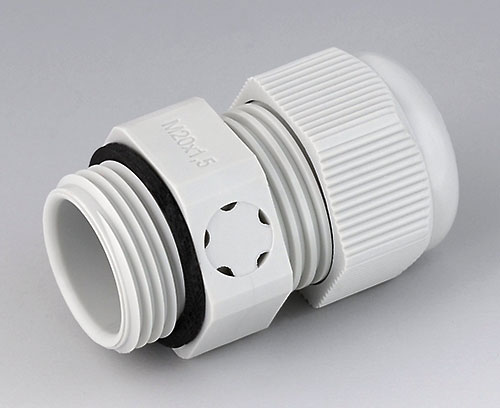

C2320917 Cable gland  M20x1.5, pressure compensation

C2320917

Cable gland M20x1.5, pressure compensation

Easy-to-fit cable gland with metric thread and integrated pressure compensation element. For protection against condensation in hermetically sealed electrical and electronic enclosures in the event of temperature and pressure fluctuations. Constant ventilation and adjustment of the internal pressure. The membrane does not function if it is blocked by dust and/or submerged in water. Water entry point: > 0.2 bar (for the membrane), RQ = 57 l/h (theoretical air flow rate at 0.07 bar).
Good cable-friendly strain relief and sealing by means of clamping blades. Counternut available as an accessory. High protection class IP 68. Clamping range: ø 8 - 13 mm cables.

Supply

1 cable gland

  • Dati tecnici
  • Purchasing Data
Materiale
Protection class
Colore
light grey RAL 7035
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
