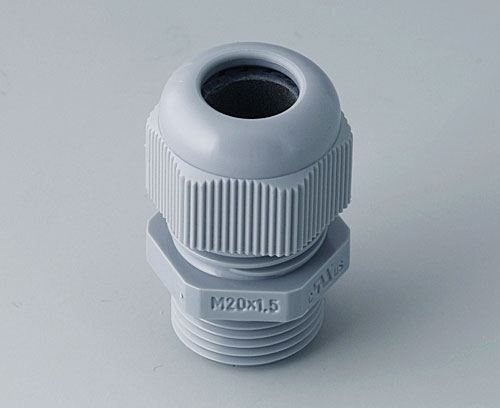

C2320418 Cable gland M20x1.5

C2320418

Cable gland M20x1.5

Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 6 - 12 mm.

Supply

1 cable gland

  • Componenti adatti

Accessory

C2320117 Counternut M20x1.5

C2320117

Counternut M20x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Chiudi

C2320117

Counternut M20x1.5
Prodotto aggiunto alla lista
PA
light grey RAL 7035
C2320126 Sealing ring for external thread M20x1.5

C2320126

Sealing ring for external thread M20x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Chiudi

C2320126

Sealing ring for external thread M20x1.5
Prodotto aggiunto alla lista
PE
natural-coloured
  • Dati tecnici
  • Purchasing Data
Materiale
Protection class
Colore
silver grey RAL 7001
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
