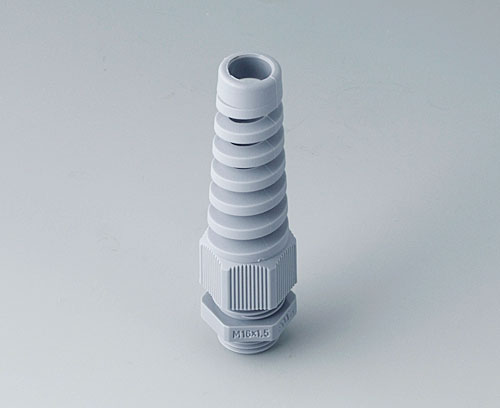

C2316518 Cable gland M16x1.5, bending protection

C2316518

Cable gland M16x1.5, bending protection

Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm.

Supply

1 cable gland

  • Componenti adatti

Accessory

C2316117 Counternut M16x1.5

C2316117

Counternut M16x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Chiudi

C2316117

Counternut M16x1.5
Prodotto aggiunto alla lista
PA
light grey RAL 7035
C2316126 Sealing ring for external thread M16x1.5

C2316126

Sealing ring for external thread M16x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Chiudi

C2316126

Sealing ring for external thread M16x1.5
Prodotto aggiunto alla lista
PE
natural-coloured
  • Dati tecnici
  • Purchasing Data
Materiale
Protection class
Colore
silver grey RAL 7001
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
