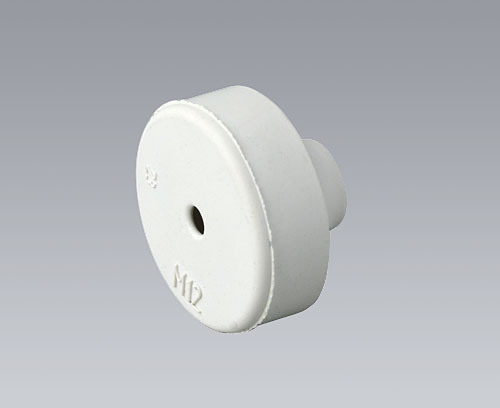

C2312137 Cable grommet

C2312137

Cable grommet

Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 2 mm and for cable diameters from 4 - 7 mm. Operating temperatures from -40°C to +100°C. Borehole ø 12.5 mm.

Supply

1 cable grommet

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Protection class
Colore
light grey RAL 7035
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Other country
