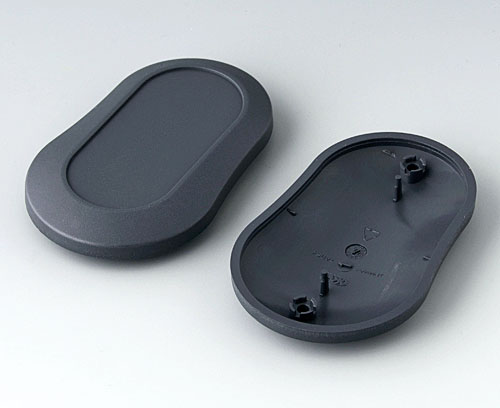

B9006908 Bottom and top part DL

B9006908

Bottom and top part DL

Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DL as separate article necessary.

Supply

1 top and bottom part DL, 2 self-tapping screws

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B9006302 Intermediate ring DL

B9006302

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

Chiudi

B9006302

Intermediate ring DL
Prodotto aggiunto alla lista
TPE
lava
B9006303 Intermediate ring DL

B9006303

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

Chiudi

B9006303

Intermediate ring DL
Prodotto aggiunto alla lista
TPE
orange
B9006304 Intermediate ring DL

B9006304

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

Chiudi

B9006304

Intermediate ring DL
Prodotto aggiunto alla lista
TPE
green
B9006305 Intermediate ring DL

B9006305

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

Chiudi

B9006305

Intermediate ring DL
Prodotto aggiunto alla lista
TPE
blue
B9006307 Intermediate ring DL

B9006307

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

Chiudi

B9006307

Intermediate ring DL
Prodotto aggiunto alla lista
SEBS (TPE)
off-white RAL 9002
B9006308 Intermediate ring DL

B9006308

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

Chiudi

B9006308

Intermediate ring DL
Prodotto aggiunto alla lista
TPE
volcano
B9006309 Intermediate ring DL

B9006309

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring DL

Chiudi

B9006309

Intermediate ring DL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Chiudi

A9164001

Key ring
Prodotto aggiunto alla lista
Steel
nickel-plated
20,5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Chiudi

B9100063

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
860mm

Accessory

B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Chiudi

B9100073

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
914x16mm

Customising options for B9006908

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Esempi di applicazione
  • Purchasing Data
Length
84 mm
Width
53 mm
Height
19 mm
PCB length, base
56 mm
PCB width, base
44,8 mm
Keypad length
64 mm
Keypad width
30,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.249 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
21 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
