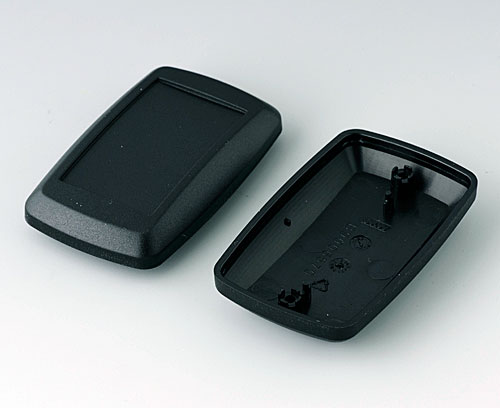

B9006826 Bottom and top part EL

B9006826

Bottom and top part EL

Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply

1 top and bottom part EL, 2 self-tapping screws

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B9006702 Intermediate ring EL

B9006702

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL
