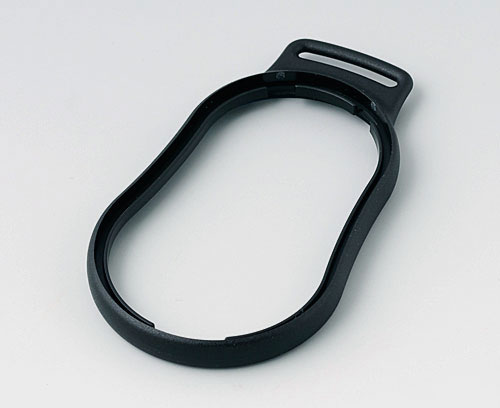

B9004309 Intermediate ring DM

B9004309

Intermediate ring DM

Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply

1 intermediate ring DM

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B9004906 Bottom and top part DM

B9004906

Bottom and top part DM Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.

Supply 1 top and bottom part DM, 1 self-tapping screw

Chiudi

B9004906

Bottom and top part DM
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
70x44x16mm
B9004907 Bottom and top part DM

B9004907

Bottom and top part DM Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.

Supply 1 top and bottom part DM, 1 self-tapping screw

Chiudi

B9004907

Bottom and top part DM
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
70x44x16mm
B9004908 Bottom and top part DM

B9004908

Bottom and top part DM Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.

Supply 1 top and bottom part DM, 1 self-tapping screw

Chiudi

B9004908

Bottom and top part DM
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
70x44x16mm

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Chiudi

A9164001

Key ring
Prodotto aggiunto alla lista
Steel
nickel-plated
20,5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Chiudi

B9100063

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Chiudi

B9100073

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
914x16mm

Customising options for B9004309

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 230 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
