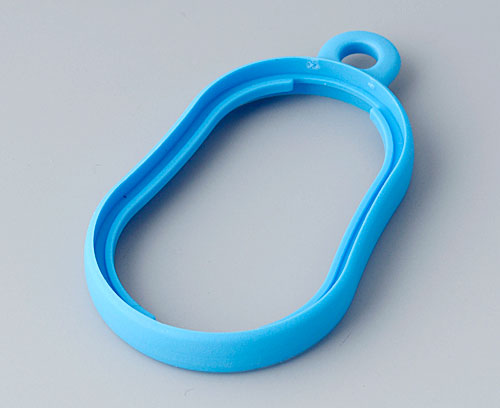

B9002355 Intermediate ring DS

B9002355

Intermediate ring DS

Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply

1 intermediate ring DS

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B9002906 Bottom and top part DS

B9002906

Bottom and top part DS Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DS as separate article necessary.

Supply 1 top and bottom part DS, 1 self-tapping screw

Chiudi

B9002906

Bottom and top part DS
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
51x32x13mm
B9002907 Bottom and top part DS

B9002907

Bottom and top part DS Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DS as separate article necessary.

Supply 1 top and bottom part DS, 1 self-tapping screw

Chiudi

B9002907

Bottom and top part DS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
51x32x13mm
B9002908 Bottom and top part DS

B9002908

Bottom and top part DS Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DS as separate article necessary.

Supply 1 top and bottom part DS, 1 self-tapping screw

Chiudi

B9002908

Bottom and top part DS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
51x32x13mm

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Chiudi

A9164001

Key ring
Prodotto aggiunto alla lista
Steel
nickel-plated
20,5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Chiudi

B9100063

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
860mm

Customising options for B9002355

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
blue
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 227 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
