B1804227 MINI-DATA-BOX SF50, high, with flanges

B1804227

MINI-DATA-BOX SF50, high, with flanges

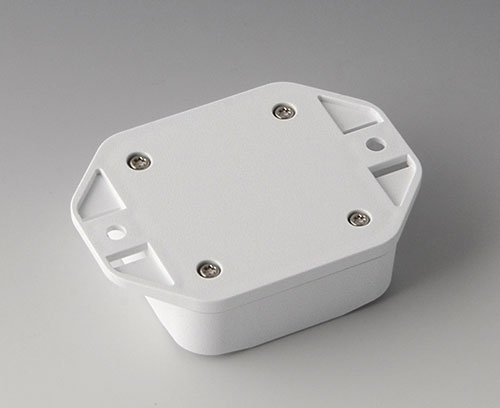

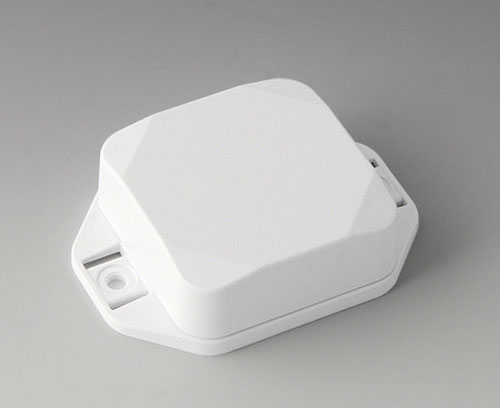

2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Bottom part with flanges, top part high

Supply

Top and bottom parts, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

B1904101 Sealing S50/SF50

B1904101

Sealing S50/SF50

Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal
