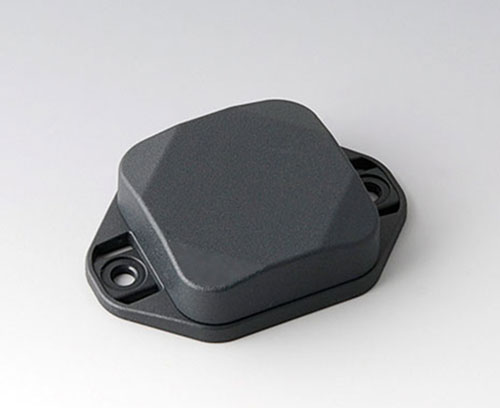

B1802128 MINI-DATA-BOX SF40, flat, with flanges

B1802128

MINI-DATA-BOX SF40, flat, with flanges

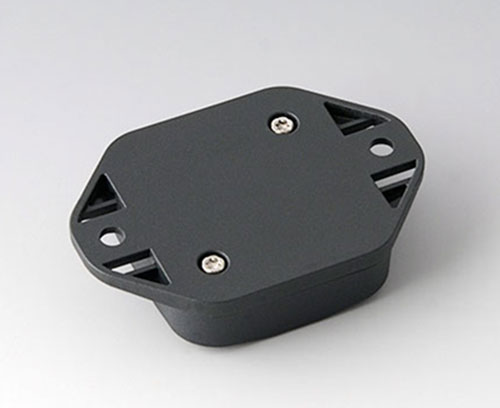

2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Bottom part with flanges, top part flat

Supply

Top and bottom parts, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

B1902101 Sealing S40/SF40

B1902101

Sealing S40/SF40

Use: increases the protection class of MINI-DATA-BOX S40 and SF40. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal

Chiudi

B1902101

Sealing S40/SF40
Prodotto aggiunto alla lista

Customising options for B1802128

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colore
anthracite grey RAL 7016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
40 mm
Width
40 mm
Height
15 mm
PCB length, base
32 mm
PCB width, base
32 mm
PCB length, top
32 mm
PCB width, top
32 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 680 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
13 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
