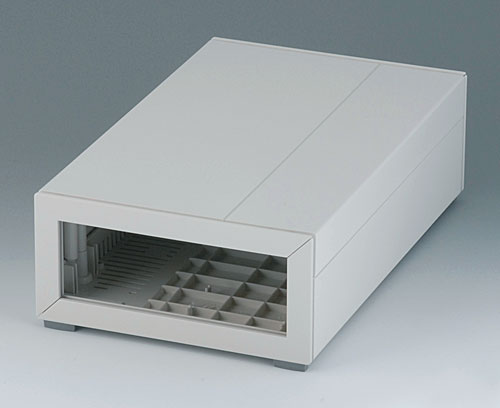

B2212017 MEDITEC E 220, without handle bar

B2212017

MEDITEC E 220, without handle bar

Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

Chiudi

B2116007

Sloping control panel E
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B2116307 Front / rear panel E, flat

B2116307

Front / rear panel E, flat For case without side panels.

Supply 1 front panel

Chiudi

B2116307

Front / rear panel E, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
141,6x55,6x3mm

Accessory "wall/holder"

B2133012 Wall mounting brackets

B2133012

Wall mounting brackets Wall mounting brackets for simple external wall assembly.

Supply 4 Wall mounting brackets, screws

Chiudi

B2133012

Wall mounting brackets
Prodotto aggiunto alla lista
PA 6
volcano

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Chiudi

A9199008

Set of screws
Prodotto aggiunto alla lista

Accessory

B2030007 Side panels 220, without holes

B2030007

Side panels 220, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Chiudi

B2030007

Side panels 220, without holes
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B2030107 Side panels 220, with holes for handle

B2030107

Side panels 220, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Chiudi

B2030107

Side panels 220, with holes for handle
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B2116407 Front / rear panel Z1

B2116407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Chiudi

B2116407

Front / rear panel Z1
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
141,6x105,6x3mm
B2116507 Handle bar E

B2116507

Handle bar E For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.

Supply 2 side arms, 1 al-profile, antislipping device, lid, assembly kit

Chiudi

B2116507

Handle bar E
Prodotto aggiunto alla lista
PA 6
off-white RAL 9002
B2116707 Infill panel E

B2116707

Infill panel E When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version E

Supply 1 front cover (for locking)

Chiudi

B2116707

Infill panel E
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
142x55x5mm
B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Chiudi

B2134012

Stacking elements
Prodotto aggiunto alla lista
PA 6
volcano
B2135017 Connectors

B2135017

Connectors For secure connection of 2 side panels. Screwless assembly, simply pin and lock.

Supply 4 connectors

Chiudi

B2135017

Connectors
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Customising options for B2212017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
160 mm
Depth
260 mm
Height
74 mm
PCB length, base
130 mm
PCB width, base
245 mm
Keypad length
132 mm
Keypad width
46 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 6.344 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
735 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
