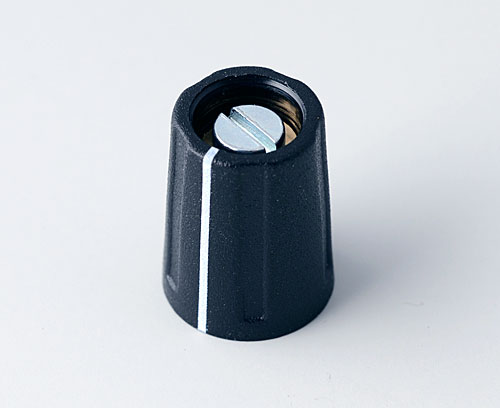

A2610030 ROUND KNOB 10, with line

A2610030

ROUND KNOB 10, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.4 Nm, function = 0.4 Nm.

Supply

1 round knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A4110000 Cover 10, without line

A4110000

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110000

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4110002 Cover 10, without line

A4110002

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110002

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4110004 Cover 10, without line

A4110004

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110004

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
yellow RAL F12/0-1
A4110005 Cover 10, without line

A4110005

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110005

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green RAL F12/0-43
A4110006 Cover 10, without line

A4110006

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110006

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4110007 Cover 10, without line

A4110007

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110007

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4110008 Cover 10, without line

A4110008

Cover 10, without line Suitable for round knobs 9 and 10. Cover simply to pin up.

Supply 1 cover

Chiudi

A4110008

Cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4110100 Cover 10, with line

A4110100

Cover 10, with line Suitable for round knobs 9 and 10. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A4110100

Cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4110102 Cover 10, with line

A4110102

Cover 10, with line Suitable for round knobs 9 and 10. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4110102

Cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4110104 Cover 10, with line

A4110104

Cover 10, with line Suitable for round knobs 9 and 10. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4110104

Cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
yellow RAL F12/0-1
A4110106 Cover 10, with line

A4110106

Cover 10, with line Suitable for round knobs 9 and 10. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4110106

Cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4110108 Cover 10, with line

A4110108

Cover 10, with line Suitable for round knobs 9 and 10. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4110108

Cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista
A7510000 Nut cover 10, without line

A7510000

Nut cover 10, without line Suitable for round knob 10. Nut cover simply to pin up.

Supply 1 nut cover

Chiudi

A7510000

Nut cover 10, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7510010 Nut cover 10, with line

A7510010

Nut cover 10, with line Suitable for round knob 10. Nut cover simply to pin up. White marking.

Supply 1 nut cover

Chiudi

A7510010

Nut cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7510018 Nut cover 10, with line

A7510018

Nut cover 10, with line Suitable for round knob 10. Nut cover simply to pin up. Black marking.

Supply 1 nut cover

Chiudi

A7510018

Nut cover 10, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory

A4210000 Arrow disk 10

A4210000

Arrow disk 10 Suitable for round knob 10. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4210000

Arrow disk 10
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4210002 Arrow disk 10

A4210002

Arrow disk 10 Suitable for round knob 10. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4210002

Arrow disk 10
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4210008 Arrow disk 10

A4210008

Arrow disk 10 Suitable for round knob 10. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4210008

Arrow disk 10
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4410060 Dial 10

A4410060

Dial 10 Dial simply to pin up for round and wing knob 10. Surface mat. Black symbol.

Supply 1 dial

Chiudi

A4410060

Dial 10
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A6402005 Adjusting key 10/13/16

A6402005

Adjusting key 10/13/16 For exact adjustment of combination knobs with marking elements, dials, arrow disks. Unproblematic knob assembly. Suitable for round knobs ø 10, 13.5 and 16.

Supply 1 adjusting key

Chiudi

A6402005

Adjusting key 10/13/16
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green

Customising options for A2610030

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
10 mm
Height
14 mm
Bore hole
3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 525 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2,9 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
