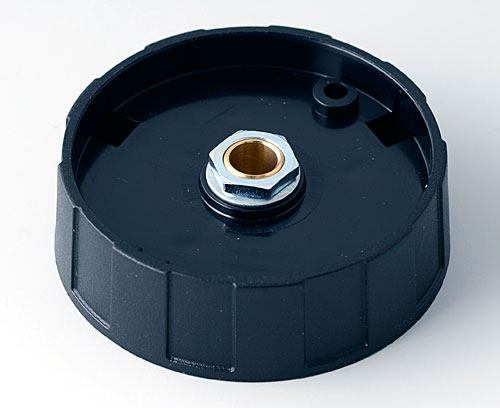

A2550060 ROUND KNOB 50, without line

A2550060

ROUND KNOB 50, without line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply

1 round knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

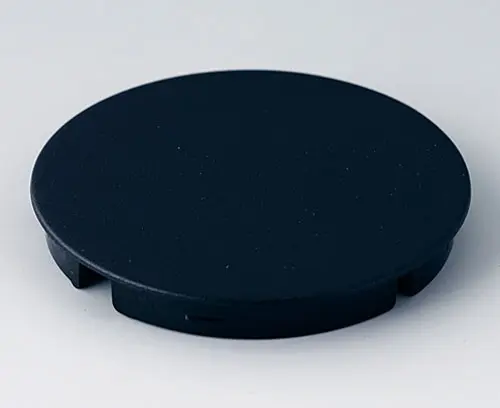

A4150000 Cover 50, without line

A4150000

Cover 50, without line Suitable for round knobs 50. Cover simply to pin up.

Supply 1 cover

Chiudi

A4150000

Cover 50, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4150008 Cover 50, without line

A4150008

Cover 50, without line Suitable for round knobs 50. Cover simply to pin up.

Supply 1 cover

Chiudi

A4150008

Cover 50, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

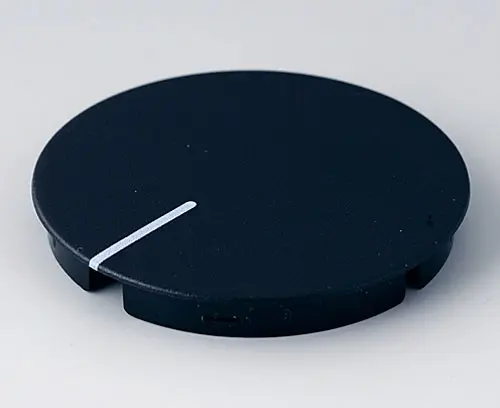

A4150100 Cover 50, with line

A4150100

Cover 50, with line Suitable for round knobs 50. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A4150100

Cover 50, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

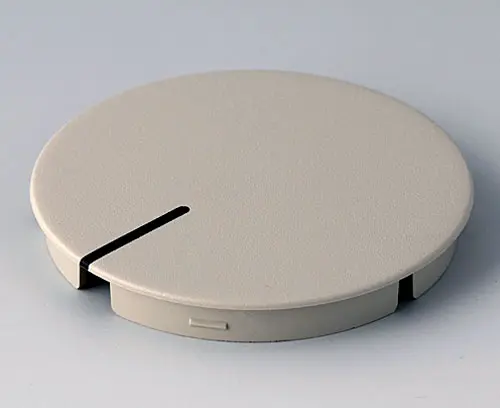

A4150107 Cover 50, with line

A4150107

Cover 50, with line Suitable for round knobs 50. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4150107

Cover 50, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

A6600064 Torsion protection 6/4.6

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

Chiudi

A6600064

Torsion protection 6/4.6
Prodotto aggiunto alla lista

Customising options for A2550060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
50 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 411 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
12 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
