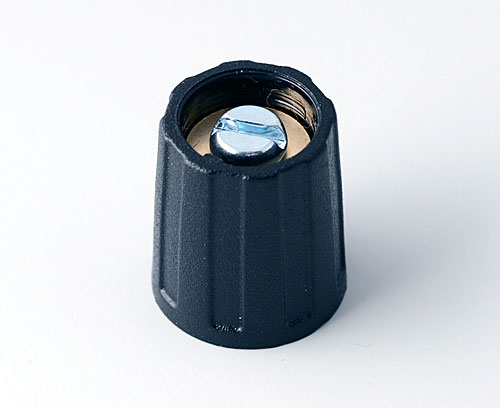

A2513060 ROUND KNOB 13.5, without line

A2513060

ROUND KNOB 13.5, without line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.7 Nm, function = 0.6 Nm.

Supply

1 round knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A4113000 Cover 13.5, without line

A4113000

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113000

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4113002 Cover 13.5, without line

A4113002

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113002

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4113004 Cover 13.5, without line

A4113004

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113004

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
yellow RAL F12/0-1
A4113005 Cover 13.5, without line

A4113005

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113005

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green RAL F12/0-43
A4113006 Cover 13.5, without line

A4113006

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113006

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4113007 Cover 13.5, without line

A4113007

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113007

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4113008 Cover 13.5, without line

A4113008

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

Chiudi

A4113008

Cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4113100 Cover 13.5, with line

A4113100

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A4113100

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4113102 Cover 13.5, with line

A4113102

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4113102

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4113104 Cover 13.5, with line

A4113104

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4113104

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
yellow RAL F12/0-1
A4113105 Cover 13.5, with line

A4113105

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4113105

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green RAL F12/0-43
A4113106 Cover 13.5, with line

A4113106

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4113106

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4113107 Cover 13.5, with line

A4113107

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4113107

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4113108 Cover 13.5, with line

A4113108

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4113108

Cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista
A7513000 Nut cover 13.5, without line

A7513000

Nut cover 13.5, without line Suitable for round and wing knob 13,5. Nut cover simply to pin up.

Supply 1 nut cover

Chiudi

A7513000

Nut cover 13.5, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7513010 Nut cover 13.5, with line

A7513010

Nut cover 13.5, with line Suitable for round and wing knob 13,5. Nut cover simply to pin up. White marking.

Supply 1 nut cover

Chiudi

A7513010

Nut cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7513018 Nut cover 13.5, with line

A7513018

Nut cover 13.5, with line Suitable for round and wing knob 13,5. Nut cover simply to pin up. Black marking.

Supply 1 nut cover

Chiudi

A7513018

Nut cover 13.5, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory

A4213000 Arrow disk 13.5

A4213000

Arrow disk 13.5 Suitable for round knob 13,5. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4213000

Arrow disk 13.5
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4213002 Arrow disk 13.5

A4213002

Arrow disk 13.5 Suitable for round knob 13,5. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4213002

Arrow disk 13.5
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4213008 Arrow disk 13.5

A4213008

Arrow disk 13.5 Suitable for round knob 13,5. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4213008

Arrow disk 13.5
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4413010 Dial 13.5

A4413010

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4413010

Dial 13.5
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4413020 Dial 13.5

A4413020

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4413020

Dial 13.5
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4413049 Dial 13.5

A4413049

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Silver symbol.

Supply 1 dial

Chiudi

A4413049

Dial 13.5
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4413060 Dial 13.5

A4413060

Dial 13.5 Dial simply to pin up for round and wing knob 13.5. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4413060

Dial 13.5
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A6402005 Adjusting key 10/13/16

A6402005

Adjusting key 10/13/16 For exact adjustment of combination knobs with marking elements, dials, arrow disks. Unproblematic knob assembly. Suitable for round knobs ø 10, 13.5 and 16.

Supply 1 adjusting key

Chiudi

A6402005

Adjusting key 10/13/16
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green

Customising options for A2513060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
13 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 783 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
