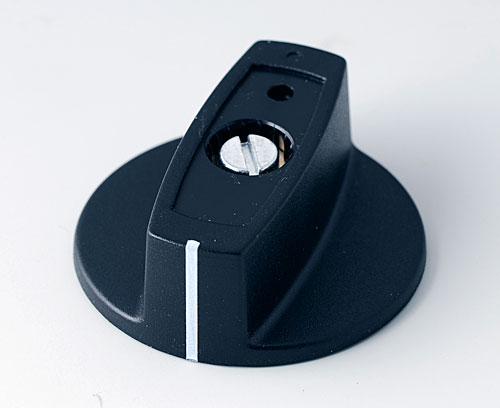

A2440060 SPINDLE-SHAPED KNOB 40, with line

A2440060

SPINDLE-SHAPED KNOB 40, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply

1 spindle-shaped knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

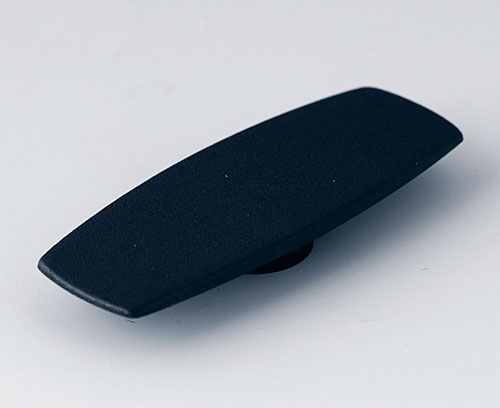

A5040000 Cover 40, without line

A5040000

Cover 40, without line Suitable for spindle-shaped knob 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A5040000

Cover 40, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A5040008 Cover 40, without line

A5040008

Cover 40, without line Suitable for spindle-shaped knob 40. Cover simply to pin up.

Supply 1 cover

Chiudi

A5040008

Cover 40, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A5040100 Cover 40, with line

A5040100

Cover 40, with line Suitable for spindle-shaped knob 40. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A5040100

Cover 40, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

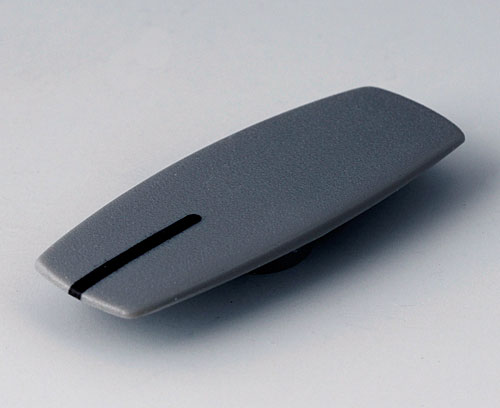

A5040108 Cover 40, with line

A5040108

Cover 40, with line Suitable for spindle-shaped knob 40. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A5040108

Cover 40, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A5140000 Nut cover 40, without line

A5140000

Nut cover 40, without line Suitable for spindle-shaped knob 40. Nut cover simply to pin up.

Supply 1 nut cover

Chiudi

A5140000

Nut cover 40, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Customising options for A2440060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
40 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 431 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
14 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
