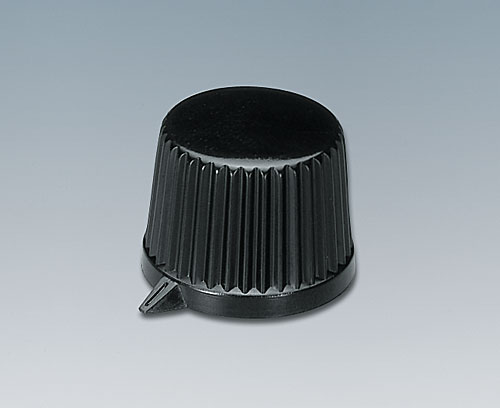

A1685540 TUNING KNOB, with lateral screw fixing

A1685540

TUNING KNOB, with lateral screw fixing

Suitable for rotary potentiometer with round shaft ends. With indicator.

Supply

1 tuning knob

  • Modifiche specifiche del cliente

Customising options for A1685540

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
black RAL 9005
Diameter
11,4 mm
Height
10,5 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 300 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Taiwan
