A9300016 Side arm kit

A9300016

Side arm kit

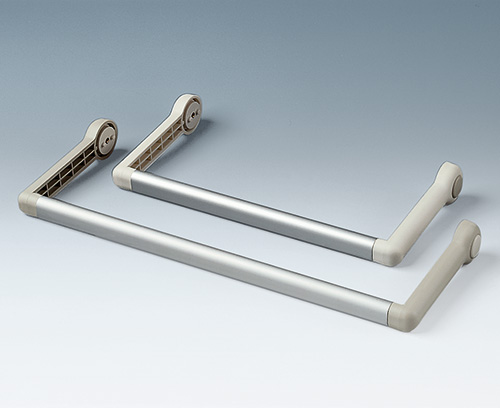

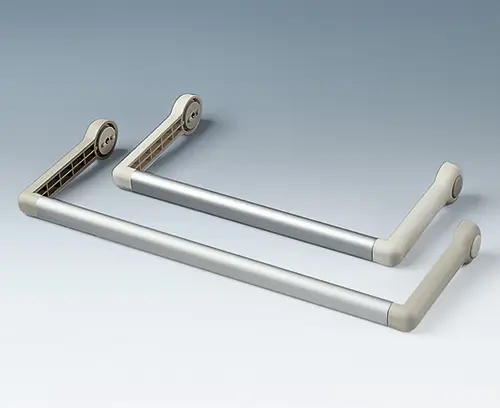

For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply

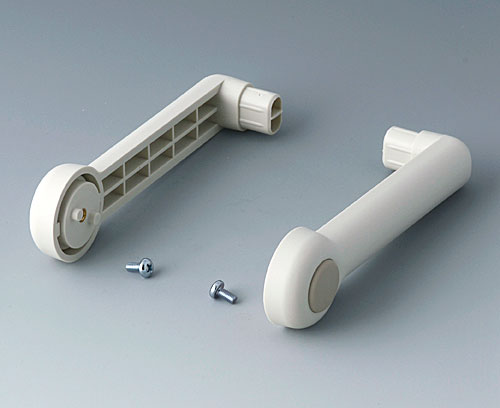

2 side arms, 2 fastenings screws

  • Modifiche specifiche del cliente

Customising options for A9300016

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
Side arms off-white RAL 9002,
Push button handle pebble grey RAL 7032
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
63 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
