Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).

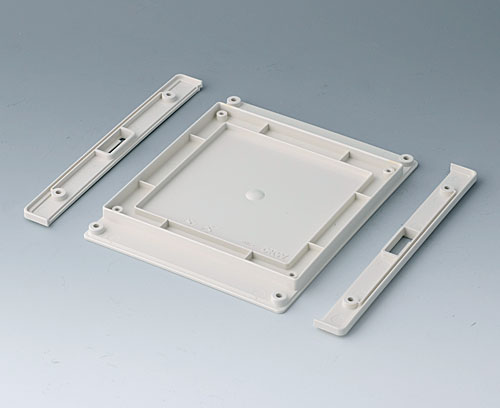

1 piastra di base con listelli di fissaggio.
1 base – desk/parete –
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 piastra di base con listelli di fissaggio.
1 base – desk/parete –
System components to complete
B4044407
Cover M
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Chiudi
Cover M
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x14mm
B4044707
Bottom part M flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part M flat, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717
Bottom part M flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part M flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757
Bottom part M high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part M high, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044767
Bottom part M high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part M high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044847
Base M - desk-top/wall -
Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.
Supply
1 base, 2 clips, assembly kit
Chiudi
Base M - desk-top/wall -
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
153x153x63mm
B4144106
Front panel M
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel M
Prodotto aggiunto alla lista
Aluminium
matt anodised
221,5x161,5x2mm
B4144107
Front panel M
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel M
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm
B4144203
Glass panel M
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Chiudi
Glass panel M
Prodotto aggiunto alla lista
Glass
clear
225,6x165,6x17,7mm
Accessory "protection"
B4144005
Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing M (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing M (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Componenti minimi
1 parte inferiore, vers. I.
1 design frontale (parte superiore).
1 piastra di base.
1 set per il montaggio a incasso.
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 piastra di base.
1 set per il montaggio a incasso.
System components to complete
B4044407
Cover M
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Chiudi
Cover M
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x14mm
B4044707
Bottom part M flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part M flat, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717
Bottom part M flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part M flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757
Bottom part M high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part M high, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044767
Bottom part M high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part M high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4144106
Front panel M
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel M
Prodotto aggiunto alla lista
Aluminium
matt anodised
221,5x161,5x2mm
B4144107
Front panel M
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel M
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm
B4144203
Glass panel M
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Chiudi
Glass panel M
Prodotto aggiunto alla lista
Glass
clear
225,6x165,6x17,7mm
B4144587
Installation assembly kit M, flat
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version
Holders matches bottom part, flat
Supply
4 holders, assembly kit, design frame
Chiudi
Installation assembly kit M, flat
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
272x218mm
B4144597
Installation assembly kit M, high
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version
Holders matches bottom part, high
Supply
4 holders, assembly kit, design frame
Chiudi
Installation assembly kit M, high
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
272x218mm
Accessory "protection"
B4144005
Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing M (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4144006
Sealing M (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing M (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
