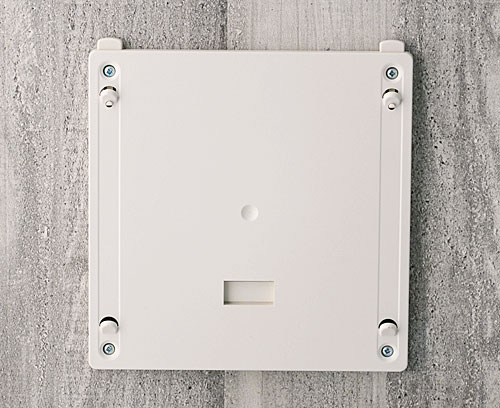

B4144247 Wall suspension element M

B4144247

Wall suspension element M

Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.

Supply

1 wall suspension element with snap-in mechanism

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B4044407 Cover M

B4044407

Cover M Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

Chiudi

B4044407

Cover M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x14mm
B4044707 Bottom part M flat, version I

B4044707

Bottom part M flat, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part flat

Chiudi

B4044707

Bottom part M flat, version I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717 Bottom part M flat, version II

B4044717

Bottom part M flat, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part flat

Chiudi

B4044717

Bottom part M flat, version II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757 Bottom part M high, version I

B4044757

Bottom part M high, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

Chiudi

B4044757

Bottom part M high, version I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044767 Bottom part M high, version II

B4044767

Bottom part M high, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

Chiudi

B4044767

Bottom part M high, version II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4144047 Battery compartment and lid M, 5 x AA

B4144047

Battery compartment and lid M, 5 x AA Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.

Supply 1 battery compartment and lid, assembly kit

Chiudi

B4144047

Battery compartment and lid M, 5 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4144106 Front panel M

B4144106

Front panel M Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4144106

Front panel M
Prodotto aggiunto alla lista
Aluminium
matt anodised
221,5x161,5x2mm
B4144107 Front panel M

B4144107

Front panel M Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4144107

Front panel M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm
B4144167 Bottom panel with handle recess M

B4144167

Bottom panel with handle recess M Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, assembly kit

Chiudi

B4144167

Bottom panel with handle recess M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4144203 Glass panel M

B4144203

Glass panel M Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

Chiudi

B4144203

Glass panel M
Prodotto aggiunto alla lista
Glass
clear
225,6x165,6x17,7mm

Accessory "protection"

B4144005 Sealing M (bottom part - front design)

B4144005

Sealing M (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Chiudi

B4144005

Sealing M (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4144006 Sealing M (bottom part - base/bot. panel/bat. comp...)

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Chiudi

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated

Customising options for B4144247

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 900 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
83 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
