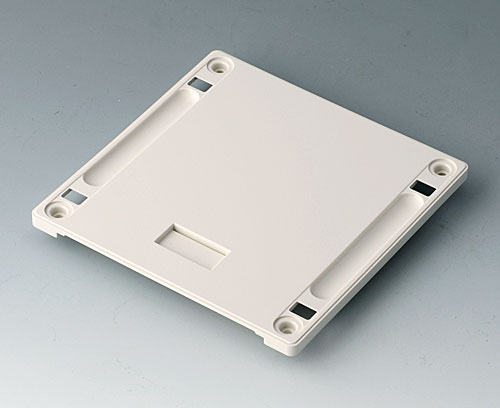

B4142167 Bottom panel with handle recess S

B4142167

Bottom panel with handle recess S

Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply

1 bottom panel, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Mobile senza vano batterie

Mobile con stazione di ricarica

Mobile / parete

Customising options for B4142167

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.444 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
46 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
