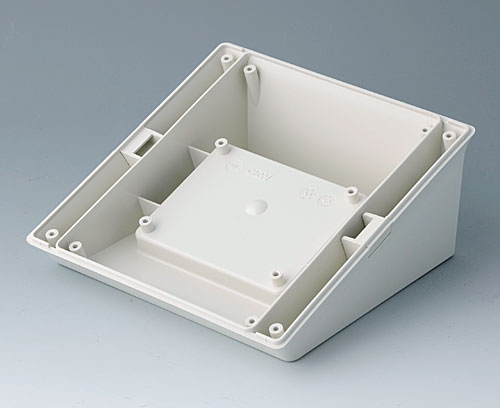

B4044827 Base M - desk-top -

B4044827

Base M - desk-top -

Assembly unit: for case combinations with open bottom part vers. I or II. Case screwed to base. Assembly screws hidden from view. Ergonomically designed for operating and reading off. Assembly of the operating panel vertically or horizontally, depending on the application, see assembly instruction.

Supply

1 base, 2 covers, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

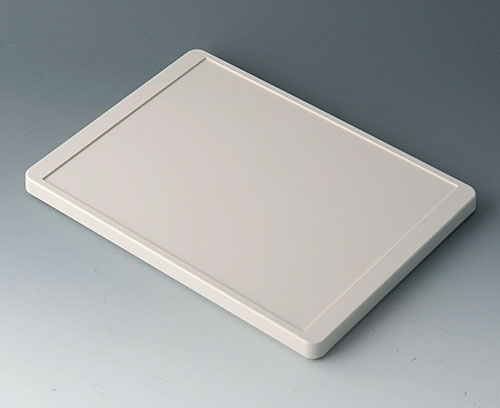

B4044407 Cover M

B4044407

Cover M Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

Chiudi

B4044407

Cover M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x14mm

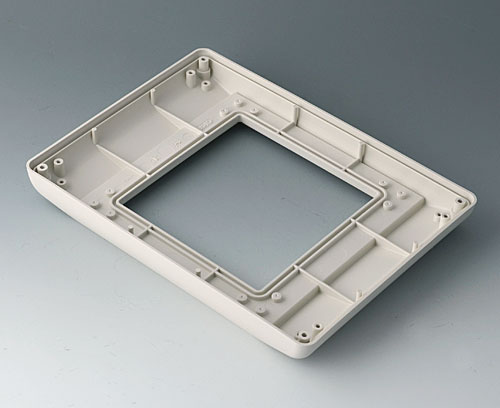

B4044707 Bottom part M flat, version I

B4044707

Bottom part M flat, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part flat

Chiudi

B4044707

Bottom part M flat, version I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044717 Bottom part M flat, version II

B4044717

Bottom part M flat, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part flat

Chiudi

B4044717

Bottom part M flat, version II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.

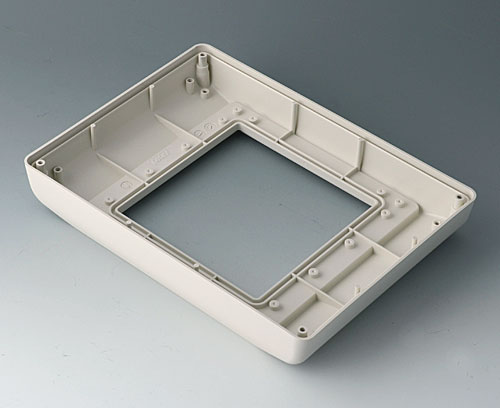

B4044757 Bottom part M high, version I

B4044757

Bottom part M high, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

Chiudi

B4044757

Bottom part M high, version I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044767 Bottom part M high, version II

B4044767

Bottom part M high, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

Chiudi

B4044767

Bottom part M high, version II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4144106 Front panel M

B4144106

Front panel M Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4144106

Front panel M
Prodotto aggiunto alla lista
Aluminium
matt anodised
221,5x161,5x2mm

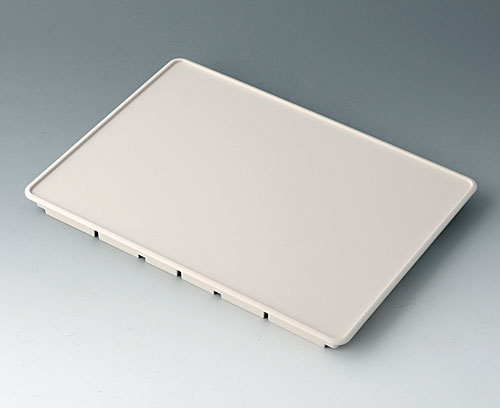

B4144107 Front panel M

B4144107

Front panel M Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4144107

Front panel M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
225,6x165,6x15,5mm

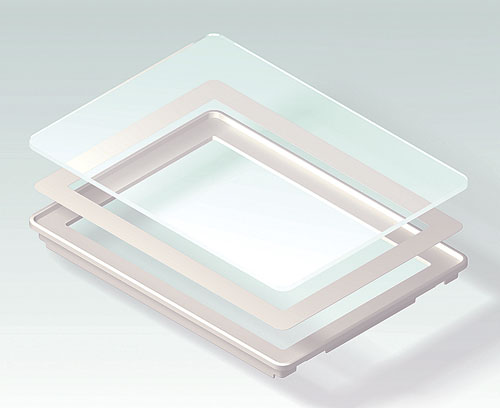

B4144203 Glass panel M

B4144203

Glass panel M Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

Chiudi

B4144203

Glass panel M
Prodotto aggiunto alla lista
Glass
clear
225,6x165,6x17,7mm

Accessory "protection"

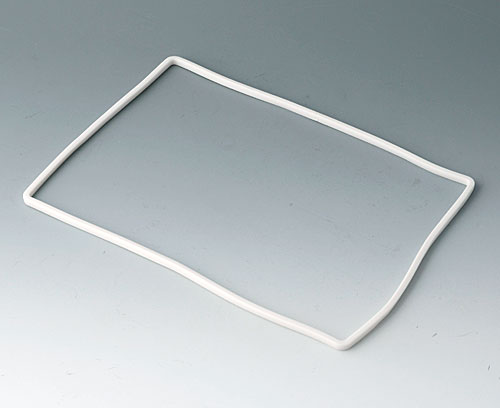

B4144005 Sealing M (bottom part - front design)

B4144005

Sealing M (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Chiudi

B4144005

Sealing M (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)

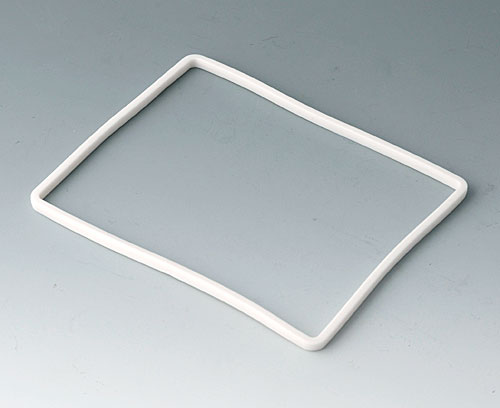

B4144006 Sealing M (bottom part - base/bot. panel/bat. comp...)

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Chiudi

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)

Customising options for B4044827

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Width
153 mm
Depth
153 mm
Height
63 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.710 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
174 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
