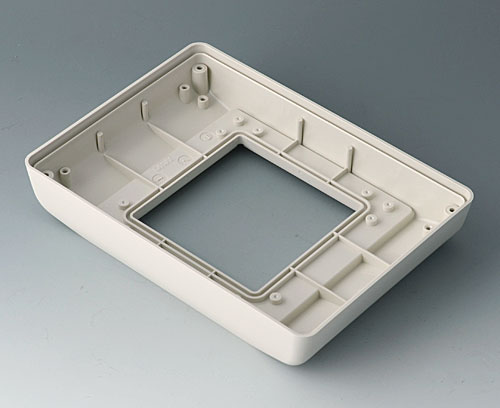

B4042767 Bottom part S high, version II

B4042767

Bottom part S high, version II

Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version

Suitable for mounting ABS front panel or glass panel (sep. article)

Supply

1 bottom part high

  • Componenti adatti
  • Modifiche specifiche del cliente

Mobile con vano batterie

Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 vano batterie con coperchio.

oppure

1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio.

System components to complete

B4142047 Battery compartment and lid S, 5 x AA

B4142047

Battery compartment and lid S, 5 x AA Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.

Supply 1 battery compartment and lid, assembly kit

Chiudi

B4142047

Battery compartment and lid S, 5 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4142107 Front panel S

B4142107

Front panel S Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4142107

Front panel S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
190,6x135,6x14,5mm
B4142203 Glass panel S

B4142203

Glass panel S Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

Chiudi

B4142203

Glass panel S
Prodotto aggiunto alla lista
Glass
clear
190,6x135,6x16,7mm

Accessory "protection"

B4142005 Sealing S (bottom part - front design)

B4142005

Sealing S (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Chiudi

B4142005

Sealing S (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4142006 Sealing S (bottom part - base/bot. panel/bat. comp...)

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Chiudi

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated

Mobile senza vano batterie

Mobile con stazione di ricarica

Mobile / parete

Desk (avvitato)

Desk / parete

Incasso

Customising options for B4042767

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 54 opt.
Sealings (accessories) as well as system components to complete required
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
190 mm
Depth
135 mm
Height
34,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.480 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
127 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
