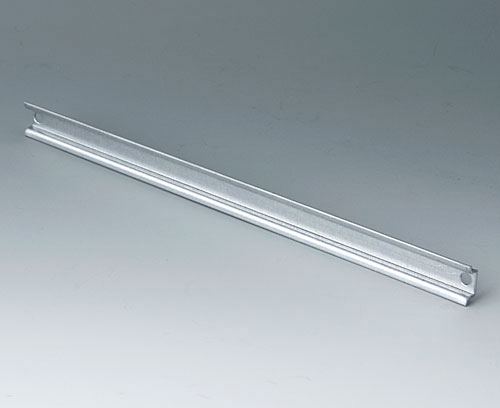

C7117087 Standard DIN rail, Type TH 15

C7117087

Standard DIN rail, Type TH 15

Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply

1 standard DIN rail TH 15

  • Componenti adatti

System components to complete

C7025081 IN-BOX

C7025081

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025081

IN-BOX
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
252x162x90mm
IP 66, IP 67, IK 07
C7025082 IN-BOX

C7025082

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025082

IN-BOX
Prodotto aggiunto alla lista
PC
light grey RAL 7035
252x162x90mm
IP 66, IP 67, IK 08
C7025084 IN-BOX

C7025084

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025084

IN-BOX
Prodotto aggiunto alla lista
ABS/PC (UL 94 HB)
light grey RAL 7035
252x162x90mm
IP 66, IP 67, IK 07
C7025085 IN-BOX

C7025085

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025085

IN-BOX
Prodotto aggiunto alla lista
PC
light grey RAL 7035
252x162x90mm
IP 66, IP 67, IK 08
C7025091 IN-BOX

C7025091

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025091

IN-BOX
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
252x162x120mm
IP 66, IP 67, IK 07
C7025094 IN-BOX

C7025094

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025094

IN-BOX
Prodotto aggiunto alla lista
ABS/PC (UL 94 HB)
light grey RAL 7035
252x162x120mm
IP 66, IP 67, IK 07
C7025095 IN-BOX

C7025095

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7025095

IN-BOX
Prodotto aggiunto alla lista
PC
light grey RAL 7035
252x162x120mm
IP 66, IP 67, IK 08

Accessory "screws"

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Chiudi

C7100167

Screw 3.9 x 9 mm
Prodotto aggiunto alla lista
  • Dati tecnici
  • Purchasing Data
Materiale
Standards
Length
220 mm
Width
15 mm
Height
5,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
34 g
Customs tariff number
(OKW product)
72287010
Country of manufacture
Germany
