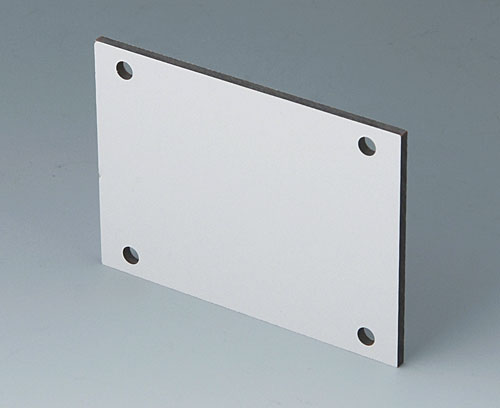

C7110056 Mounting plate

C7110056

Mounting plate

Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply

1 mounting plate

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

C7008011 IN-BOX

C7008011

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008011

IN-BOX
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
84x82x55mm
IP 66, IP 67, IK 07
C7008012 IN-BOX

C7008012

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008012

IN-BOX
Prodotto aggiunto alla lista
PC
light grey RAL 7035
84x82x55mm
IP 66, IP 67, IK 08
C7008014 IN-BOX

C7008014

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008014

IN-BOX
Prodotto aggiunto alla lista
ABS/PC (UL 94 HB)
light grey RAL 7035
84x82x55mm
IP 66, IP 67, IK 07
C7008015 IN-BOX

C7008015

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008015

IN-BOX
Prodotto aggiunto alla lista
PC
light grey RAL 7035
84x82x55mm
IP 66, IP 67, IK 08
C7008021 IN-BOX

C7008021

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008021

IN-BOX
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
84x82x85mm
IP 66, IP 67, IK 07
C7008024 IN-BOX

C7008024

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008024

IN-BOX
Prodotto aggiunto alla lista
ABS/PC (UL 94 HB)
light grey RAL 7035
84x82x85mm
IP 66, IP 67, IK 07
C7008025 IN-BOX

C7008025

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Chiudi

C7008025

IN-BOX
Prodotto aggiunto alla lista
PC
light grey RAL 7035
84x82x85mm
IP 66, IP 67, IK 08

Accessory "screws"

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Chiudi

C7100167

Screw 3.9 x 9 mm
Prodotto aggiunto alla lista

Customising options for C7110056

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Length
73 mm
Width
53 mm
Thickness
2,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
14 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
