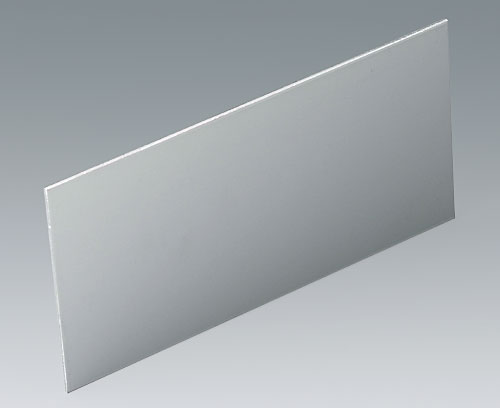

A9146101 Front panel M

A9146101

Front panel M

For HAND-TERMINAL version II. Front panel installation at the top part from the rear.

Supply

1 front panel (srews supplied with the case)

  • Usato per
  • Modifiche specifiche del cliente
A9046207 HAND-TERMINAL M, Vers. II

A9046207

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

Chiudi

A9046207

HAND-TERMINAL M, Vers. II
Prodotto aggiunto alla lista
PC+ABS (UL 94 V-0)
off-white RAL 9002
220x120x65mm
IP 65 opt.
A9046209 HAND-TERMINAL M, Vers. II

A9046209

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

Chiudi

A9046209

HAND-TERMINAL M, Vers. II
Prodotto aggiunto alla lista
PC+ABS (UL 94 V-0)
black RAL 9005
220x120x65mm
IP 65 opt.

Customising options for A9146101

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Materiale
Colore
matt anodised
Length
179 mm
Width
88 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
93 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
