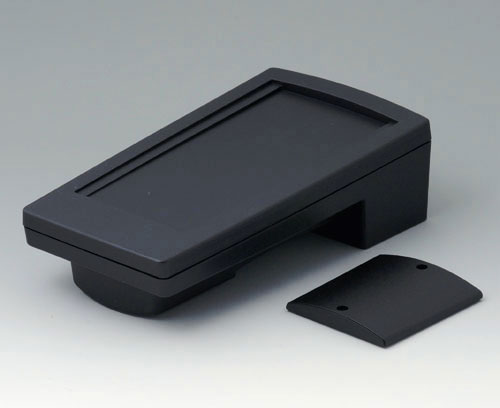

A9046109 HAND-TERMINAL M, Vers. I

A9046109

HAND-TERMINAL M, Vers. I

Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version

With closed operation area

Supply

Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Chiudi

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Prodotto aggiunto alla lista
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Chiudi

A9174002

Battery compartment, 2 x 9 V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Chiudi

A9174003

Battery compartment, 1 x 9 V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Chiudi

A9174006

Set of battery clips, 1 x 9 V
Prodotto aggiunto alla lista
Steel
tin-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Chiudi

A9250250

Battery spacer
Prodotto aggiunto alla lista
PE foam
50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Chiudi

A9345217

Set of battery compartment, 4 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

A9146106 Sealing kit M

A9146106

Sealing kit M For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply 1 sealing kit

Chiudi

A9146106

Sealing kit M
Prodotto aggiunto alla lista

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308132

Self-tapping screw 3 x 8 mm (T10)
Prodotto aggiunto alla lista
Stainless steel

Customising options for A9046109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing kit for the enclosure
Colore
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
220 mm
Width
120 mm
Height
65 mm
PCB length, base
206 mm
PCB width, base
93 mm
PCB length, top
206 mm
PCB width, top
93 mm
Keypad length
170 mm
Keypad width
70 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.221 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - miscellaneous

Weight/1 part
301 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
