A9421107 EVOTEC 100, Vers. I

A9421107

EVOTEC 100, Vers. I

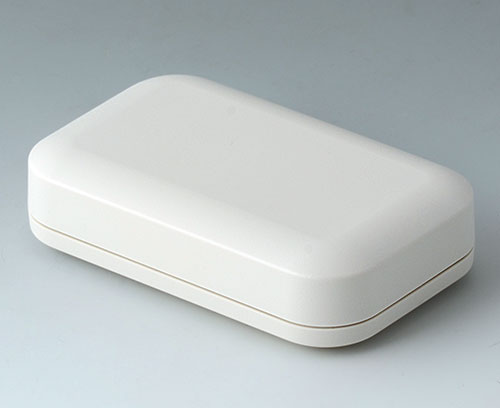

2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version

Top part "Flat"

Supply

Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

A9502030 Sealing 100

A9502030

Sealing 100 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal
