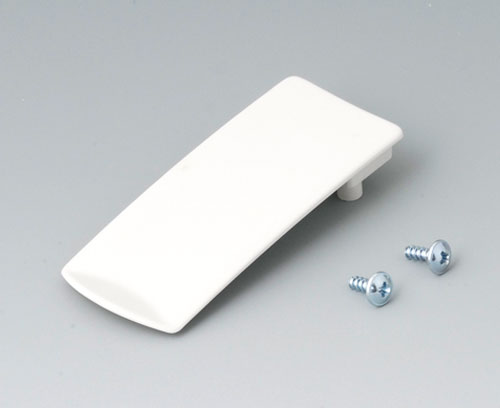

B7110107 Belt / pocket clip

B7110107

Belt / pocket clip

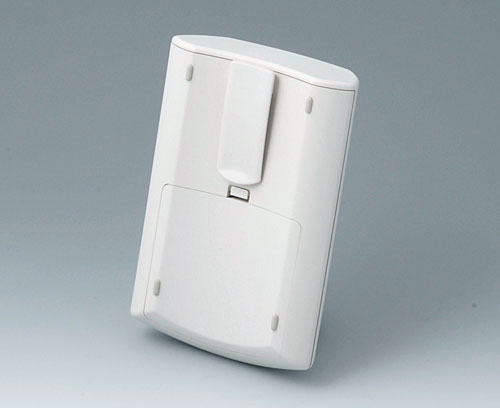

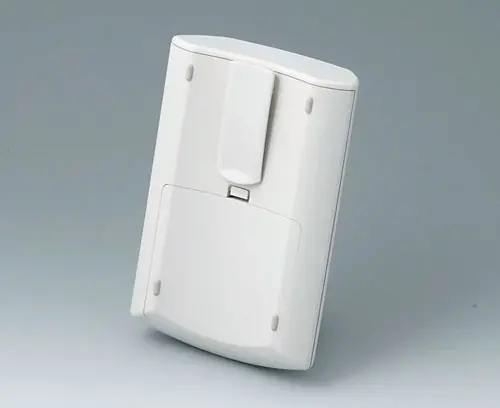

Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply

1 clip, assembly kit

  • Usato per
  • Modifiche specifiche del cliente
B7000107 ERGO-CASE S, flat

B7000107

ERGO-CASE S, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Chiudi

B7000107

ERGO-CASE S, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
80x96x32mm
IP 54 opt.
B7005107 ERGO-CASE S, high

B7005107

ERGO-CASE S, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Chiudi

B7005107

ERGO-CASE S, high
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
80x96x44mm
IP 54 opt.
B7010107 ERGO-CASE M, flat

B7010107

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With flat top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Chiudi

B7010107

ERGO-CASE M, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x100x40mm
IP 54 opt.
B7010207 ERGO-CASE M, flat

B7010207

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Chiudi

B7010207

ERGO-CASE M, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x100x40mm
IP 54 opt.
B7015107 ERGO-CASE M, high

B7015107

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With high top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Chiudi

B7015107

ERGO-CASE M, high
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x100x55mm
IP 54 opt.
B7015207 ERGO-CASE M, high

B7015207

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Chiudi

B7015207

ERGO-CASE M, high
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x100x55mm
IP 54 opt.

Customising options for B7110107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
