B7040229 ERGO-CASE XS

B7040229

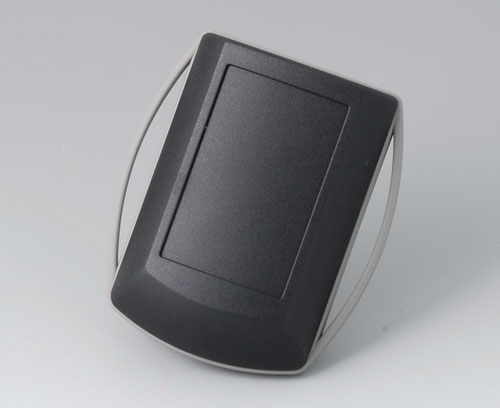

ERGO-CASE XS

Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring with two eyelet holes

Supply

top and bottom part, ring, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "carrying"

B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap
