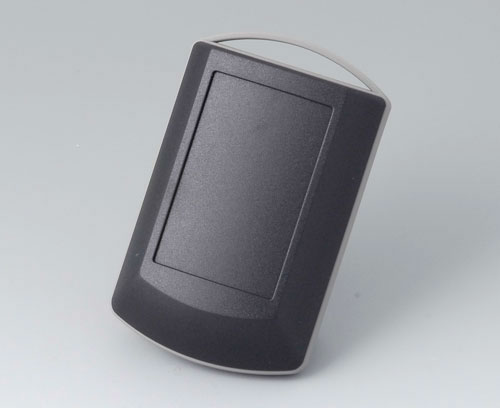

B7040219 ERGO-CASE XS

B7040219

ERGO-CASE XS

Three-part enclosure in ergonomic design. Easy to carry. Carrying strap and hand strap as accessories.TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring with one eyelet hole

Supply

top and bottom part, ring, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "carrying"

B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Chiudi

B9100063

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Chiudi

B9100073

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
914x16mm

Customising options for B7040219

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ABS (UL 94 HB)
Bottom and top part
TPE
Intermediate ring
Protection class
Colore
Bottom and top part black RAL 9005,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
82 mm
Width
56 mm
Height
24 mm
PCB length, base
48 mm
PCB width, base
45 mm
PCB length, top
53 mm
PCB width, top
40 mm
Keypad length
52 mm
Keypad width
33,1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.603 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
