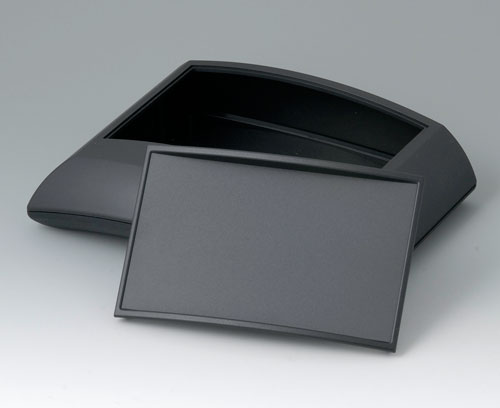

B7020139 ERGO-CASE L, flat

B7020139

ERGO-CASE L, flat

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version

With flat top part and with display panel

Supply

1 top and 1 bottom part, battery compartment lid, display trim, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Chiudi

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Prodotto aggiunto alla lista
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Chiudi

A9174002

Battery compartment, 2 x 9 V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Chiudi

A9174003

Battery compartment, 1 x 9 V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Chiudi

A9174006

Set of battery clips, 1 x 9 V
Prodotto aggiunto alla lista
Steel
tin-plated
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Chiudi

A9345217

Set of battery compartment, 4 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "wall/holder"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Chiudi

B7110028

Fastening elements L / M / S
Prodotto aggiunto alla lista
PA 6
volcano
B7120048 Wall suspension elements L

B7120048

Wall suspension elements L Special wall suspension element for the ERGO-CASE L for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 assembly kit

Chiudi

B7120048

Wall suspension elements L
Prodotto aggiunto alla lista
PA 6
volcano

Accessory "carrying"

B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Chiudi

B7110028

Fastening elements L / M / S
Prodotto aggiunto alla lista
PA 6
volcano
B7110139 Belt strap

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Chiudi

B7110139

Belt strap
Prodotto aggiunto alla lista
black
1200x30mm
B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Chiudi

B7110149

Belt strap
Prodotto aggiunto alla lista
black
1500x30mm

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated

Customising options for B7020139

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
150 mm
Width
200 mm
Height
54 mm
Keypad length
83,8 mm
Keypad width
141,1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 6.385 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
253 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
