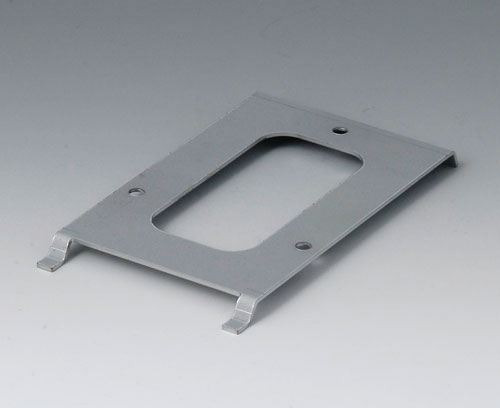

B4113147 Wall suspension element S

B4113147

Wall suspension element S

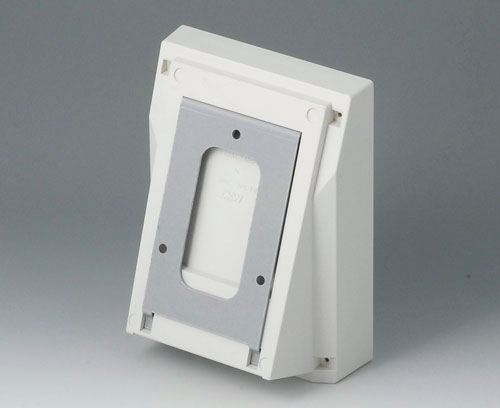

Wall suspension element S for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply

1 wall suspension element, 2 screws

  • Usato per
  • Modifiche specifiche del cliente
B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Chiudi

B4013117

DATEC-TERMINAL S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

Customising options for B4113147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
galvanized
Width
79 mm
Height
137 mm
Depth
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 861 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
88 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
