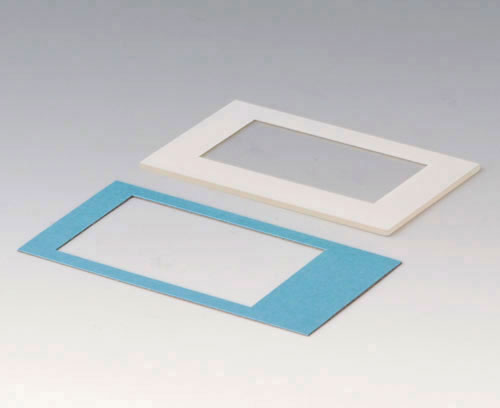

A9173007 Display window S, border off-white

A9173007

Display window S, border off-white

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply

1 display window, 1 adhesive foil

  • Usato per
  • Modifiche specifiche del cliente
A9073207 DATEC-MOBIL-BOX S, Vers. II

A9073207

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9073207

DATEC-MOBIL-BOX S, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
152x83x33,5mm
IP 65 opt.
A9073217 DATEC-MOBIL-BOX S, Vers. II

A9073217

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9073217

DATEC-MOBIL-BOX S, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
152x83x33,5mm
IP 65 opt.

Customising options for A9173007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
