A9177139 Station S

A9177139

Station S

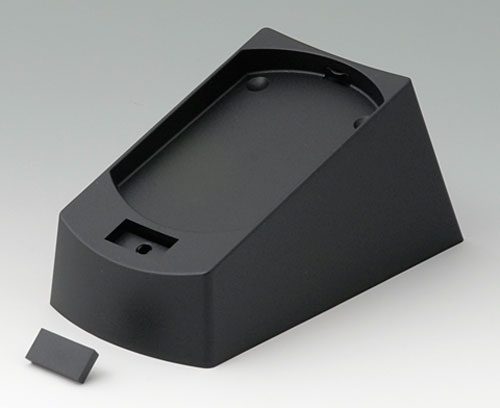

Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version

Desktop version

Supply

1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A9077109 DATEC-CONTROL S, Vers. I

A9077109

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9077109

DATEC-CONTROL S, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
228x117x47mm
IP 65 opt.
A9077209 DATEC-CONTROL S, Vers. II

A9077209

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9077209

DATEC-CONTROL S, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
228x117x47mm
IP 65 opt.

Accessory "protection"

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Chiudi

A9199005

Strain relief
Prodotto aggiunto alla lista
PA 6
volcano

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated

Customising options for A9177139

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
108 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
