A9176158 Battery compartment XS, 3 x AA
Scroll

A9176158

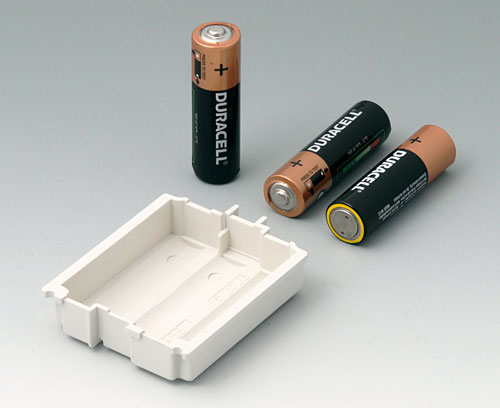

Battery compartment XS, 3 x AA

Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply

1 battery compartment

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello
Crea scheda dati PDF

Create la vostra scheda dati PDF per A9176158

Selezionate le informazioni prodotto per la vostra scheda dati.

Chiudi
  • Componenti adatti

System components to complete

A9076107 DATEC-CONTROL XS, Vers. I

A9076107

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down (battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9076107

DATEC-CONTROL XS, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
200x94x39,5mm
IP 65 opt.
A9076109 DATEC-CONTROL XS, Vers. I

A9076109

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9076109

DATEC-CONTROL XS, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
200x94x39,5mm
IP 65 opt.
A9076157 SET: DATEC-CONTROL XS, Vers. I,station..

A9076157

SET: DATEC-CONTROL XS, Vers. I,station.. Enclosure-kit: DATEC-CONTROL XS, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Chiudi

A9076157

SET: DATEC-CONTROL XS, Vers. I,station..
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
200x94mm
IP 65 opt.
A9076159 SET: DATEC-CONTROL XS, Vers. I,station..

A9076159

SET: DATEC-CONTROL XS, Vers. I,station.. Enclosure-kit: DATEC-CONTROL XS, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Chiudi

A9076159

SET: DATEC-CONTROL XS, Vers. I,station..
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
200x94mm
IP 65 opt.
A9076207 DATEC-CONTROL XS, Vers. II

A9076207

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9076207

DATEC-CONTROL XS, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
200x94x39,5mm
IP 65 opt.
A9076209 DATEC-CONTROL XS, Vers. II

A9076209

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down.(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Chiudi

A9076209

DATEC-CONTROL XS, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
200x94x40mm
IP 65 opt.
A9076257 SET: DATEC-CONTROL XS, Vers. II, station.

A9076257

SET: DATEC-CONTROL XS, Vers. II, station. Enclosure-kit: DATEC-CONTROL XS, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Chiudi

A9076257

SET: DATEC-CONTROL XS, Vers. II, station.
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
200x94mm
IP 65 opt.
A9076259 SET: DATEC-CONTROL XS, Vers. II, station.

A9076259

SET: DATEC-CONTROL XS, Vers. II, station. Enclosure-kit: DATEC-CONTROL XS, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

Chiudi

A9076259

SET: DATEC-CONTROL XS, Vers. II, station.
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
200x94mm
IP 65 opt.

Accessory "battery"

A9176008 Set of battery clips, 3 x AA

A9176008

Set of battery clips, 3 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 1 set incl. 1 self-adhesive battery spacer

Chiudi

A9176008

Set of battery clips, 3 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated
  • Dati tecnici
  • Purchasing Data
Materiale
ABS (UL 94 HB)
Colore
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
8 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
