B7136633 CONTROL-KNOBS 36, optional illumination

B7136633

CONTROL-KNOBS 36, optional illumination

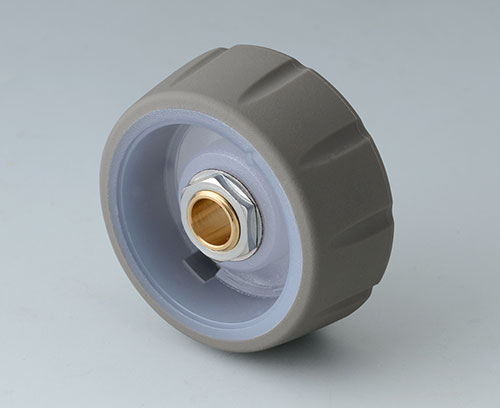

Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).

Version

With optional illumination – translucent optic ring on the top surface

Supply

1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

B7536108 Cover 36

B7536108

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

Chiudi

B7536108

Cover 36
Prodotto aggiunto alla lista
PA 6
volcano
B7536109 Cover 36

B7536109

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

Chiudi

B7536109

Cover 36
Prodotto aggiunto alla lista
PA 6
nero
B7536208 Base 36

B7536208

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7536208

Base 36
Prodotto aggiunto alla lista
PA 6
volcano
B7536209 Base 36

B7536209

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Chiudi

B7536209

Base 36
Prodotto aggiunto alla lista
PA 6
nero
B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Chiudi

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
Prodotto aggiunto alla lista

Customising options for B7136633

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
PC
Knob body
TPE
Outer shell
Colore
Outer shell volcano,
Knob body translucent
Diameter
36 mm
Height
14,7 mm
Bore hole ″
1/4″
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 860 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
13 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
