A9040165 FLAT-PACK CASES 189 N, Vers. II

A9040165

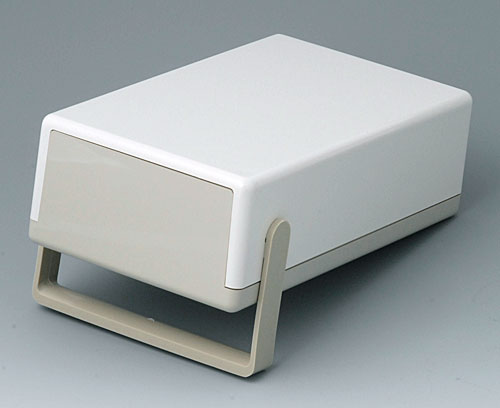

FLAT-PACK CASES 189 N, Vers. II

Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version

With handle bar

Supply

1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308132

Self-tapping screw 3 x 8 mm (T10)
Prodotto aggiunto alla lista
Stainless steel

Accessory

A9100008 Snap-lock

A9100008

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

Chiudi

A9100008

Snap-lock
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
natural-coloured
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9210290

Anti-slide feet 9.5 x 3.8 mm
Prodotto aggiunto alla lista
transparent

Customising options for A9040165

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
Top part off-white RAL 9002,
Bottom part pebble grey RAL 7032
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
189 mm
Width
110 mm
Height
60 mm
PCB length, base
160 mm
PCB width, base
103 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.213 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
256 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
