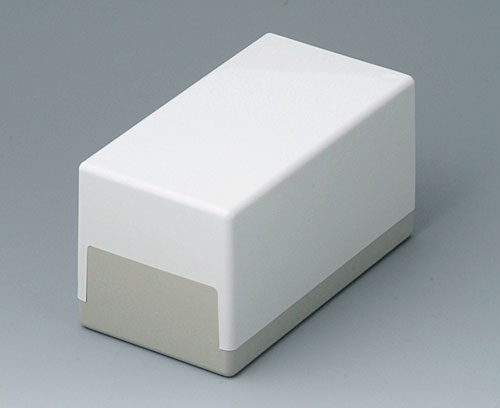

A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I

Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version

Without handle bar

Supply

1 top and base part, assembly kit and 4 screws for the mounting of PCBs

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "wall/holder"

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
