A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I

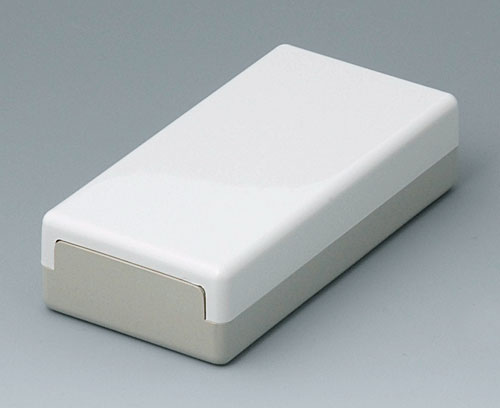

Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version

Without handle bar

Supply

1 top and base part, assembly kit and 4 screws for the mounting of PCBs

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "carrying"

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Chiudi

A9172107

Belt/Pocket clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0308132

Self-tapping screw 3 x 8 mm (T10)
Prodotto aggiunto alla lista
Stainless steel

Accessory

A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9250807

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9250817

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A9010065

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
Top part off-white RAL 9002,
Bottom part pebble grey RAL 7032
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
100 mm
Width
50 mm
Height
25 mm
PCB length, base
76 mm
PCB width, base
43 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.096 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
60 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
