A9085165 COMBI DESK CASE H

A9085165

COMBI DESK CASE H

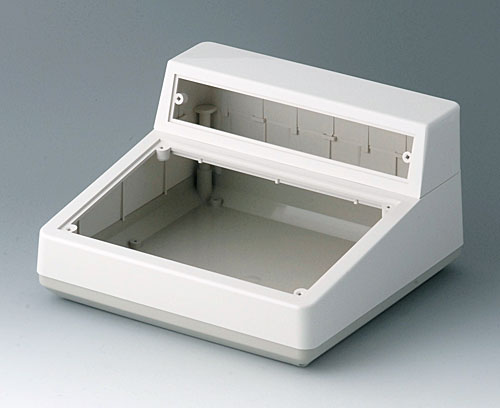

Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version

Case with attachment, e.g. display

Supply

1 top and base part, attachment, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

A9184001 Front panel

A9184001

Front panel Front panel for COMBI DESK CASE F/H. Front panel for attachment for COMBI DESK CASE H separate accessories (A9185001).

Supply 1 front panel (screws supplied with case)

Chiudi

A9184001

Front panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
200x130x1,5mm
A9185001 Front panel

A9185001

Front panel Front panel for attachment for COMBI DESK CASE H.

Supply 1 front panel (screws supplied with case)

Chiudi

A9185001

Front panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
200x35x1,5mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9210290

Anti-slide feet 9.5 x 3.8 mm
Prodotto aggiunto alla lista
transparent

Customising options for A9085165

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
Top part with attachment off-white RAL 9002,
Bottom part pebble grey RAL 7032
Width
228 mm
Depth
216 mm
Height
126 mm
PCB length, base
196 mm
PCB width, base
210 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 515 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
384 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
